DESCRIPTION :-

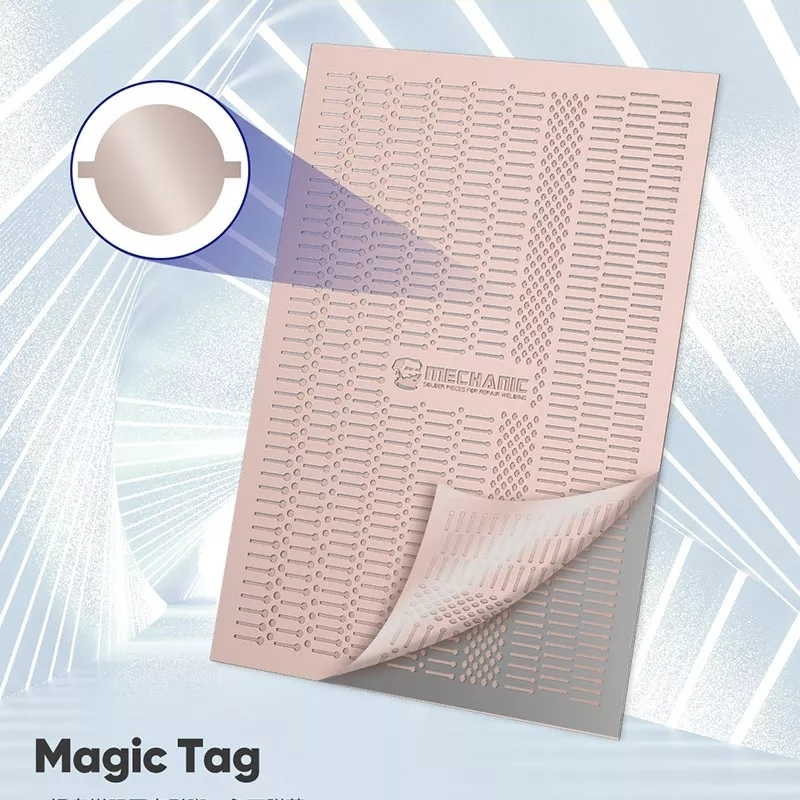

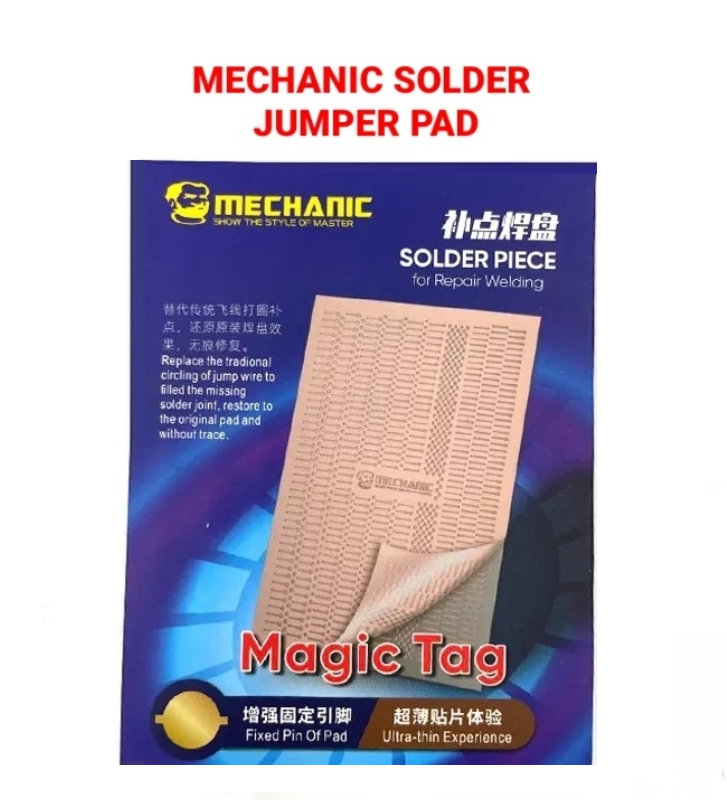

MECHANIC MAGIC TAG SOLDER PIECE

Mechanic Dot-Repairing Soldering Lug replaces the traditional jumping wire, For Fixing Soldering Spots on Phone Welding Plates. Mechanic 2nd Generation Enhanced Version Solder Piece For Repair Welding, Replace the traditional circling of jump wire to fill the missing solder joint, restore to the original pad and without a trace

Feature:

 The new technology of Repair Welding

1. Fixed pin of pad: the pads are reinforced with fixed pins and will never fall off.

2. Ultra-thin experience: it adopts industrial-grade printed circuit board copper foil with a thickness



3. Strong bond: The connection joint with the circuit is firm, and can be fixed in the green oil well. (UV curing solder mask ink)

4. Good flatness: good flatness, can prevent pseudo soldering effectively caused by unevenness.

5. Save time and energy: it saves time and effort and no need to circle during jumping wire so the repair efficiency is relatively high.

6. Stable welding: The BGA bonding surface has high saturation, stable electrical performance, and good welding strength, and it is not easy to drop off and unsoldering.

7. Applicable for dot-faded soldering pads with various shapes and models of soldering lug

8. Applicable for the beauty of the pad with seamless repairing

9. Curling the wires to make jumper wires is no longer needed. After pad soldering, the double-layered motherboard can be installed to the testing fixture or recombined directly. Repair efficiency will be tremendously increased.

10. MECHANIC Rework Pad For Repair Welding

11. Magic Tag weld point

12. Magic Tag Solder joint
