Output Power: 160W

* Power Supply Voltage: 220V ±10% 50Hz Or 220V ±10% 60Hz

* Export Voltage: Continuously Adjustable From 0 To 30V  (Resolution Is 0.01V)

* Voltage Export Accuracy: ±0. 02V

* Recovery Time: 100Us

* Constant Current Value: 0~5A

* Constant Output Current: Continuously Adjustable From 0 To 5A (Resolution Is 0. 0001A)

* Ocp Current Value:  0-5A Accuracy: ±0. 01A

* Signal Test Frequency  Range: 30~1800Mhz Including Cell Phone Signal Test

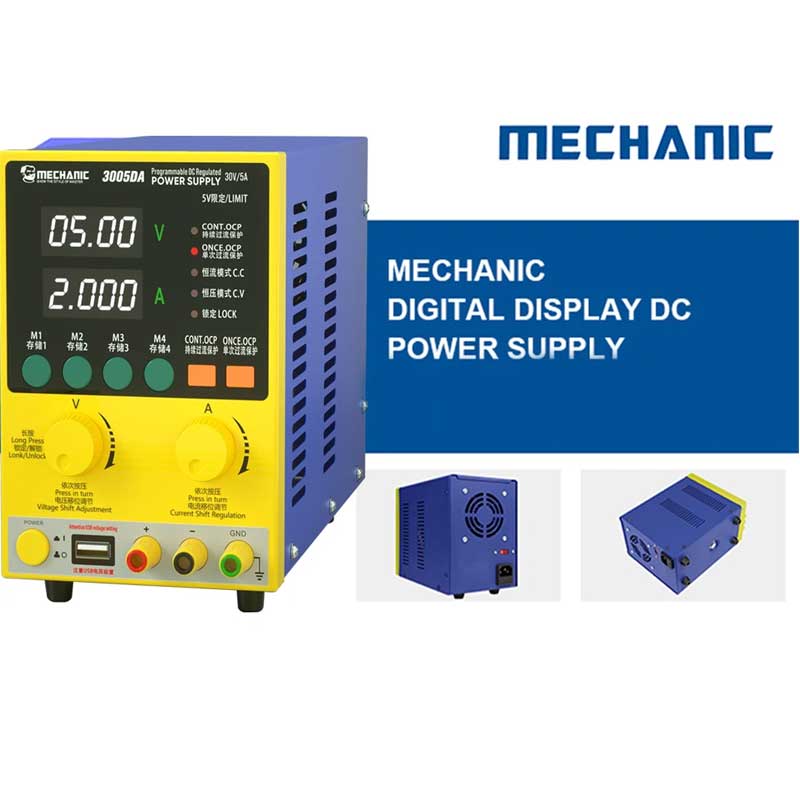

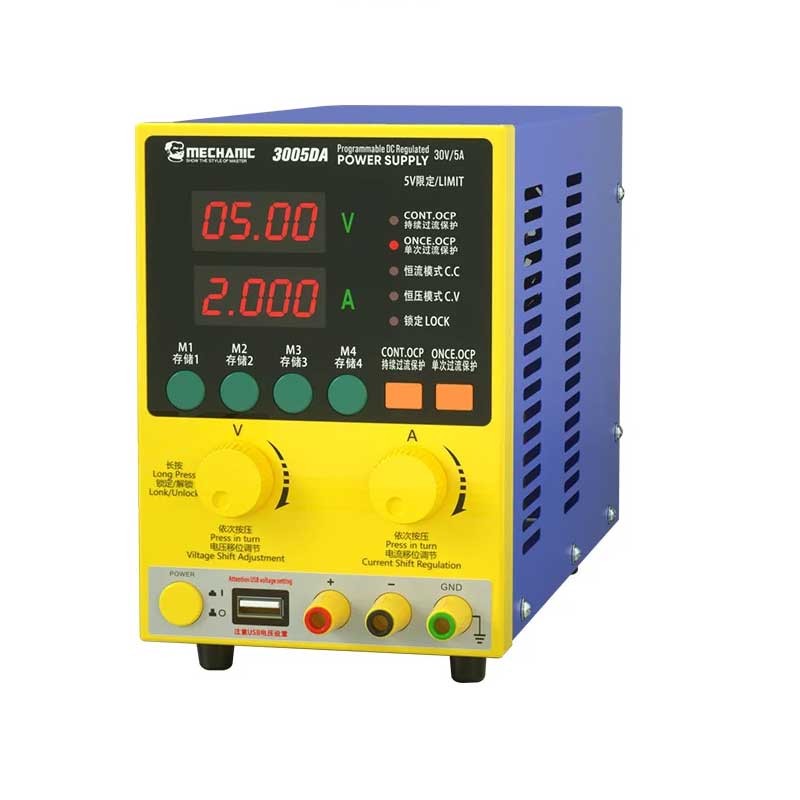

MECHANIC 3005DA POWER SUPPLY

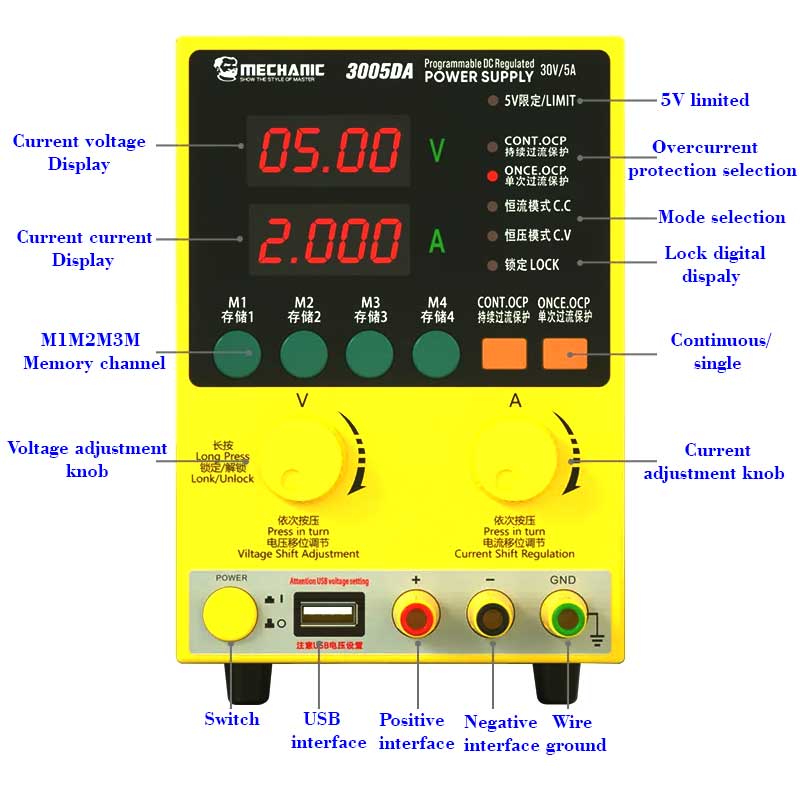

1. Four digital displays with current and voltage,

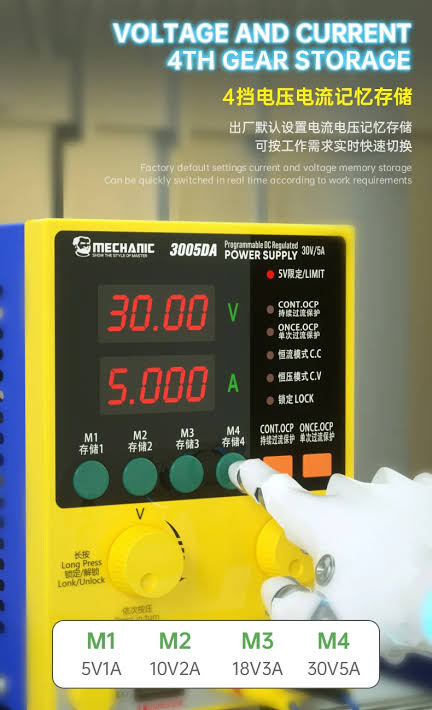

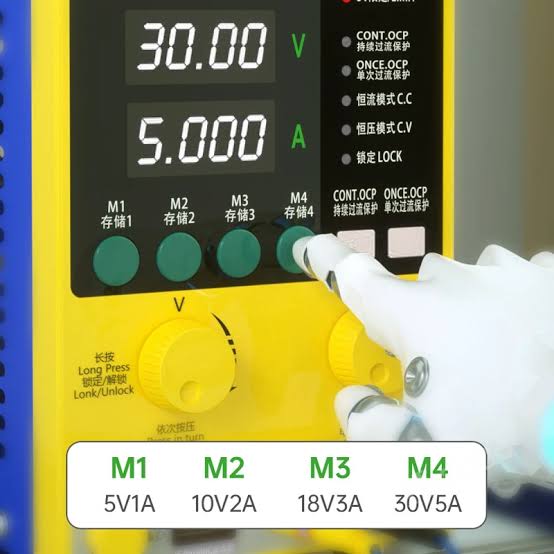

2. four stages remember storage, both storage of the voltage and current,
3. overcurrent protection,power 160W, DC0-30V/0-5A,Stability ≤0.05%+1mV/0.1%+10mA

• Power Supply Unit: The MECHANIC 3005DA is a power supply unit designed to provide adjustable DC voltage and current output to power various electronic devices, circuits, or components during testing, repairs, prototyping, or educational purposes.

• Model Number: The "3005DA" designation might indicate specific features or specifications of this power supply model, such as the maximum voltage and current output, accuracy, control features, and more.

• DC Output: It likely provides direct current (DC) output with adjustable voltage and current settings, allowing users to precisely set the desired output levels within its specified range.

• Adjustable Settings: This power supply may feature adjustable knobs, digital displays, or controls to set and monitor the voltage and current output according to the user's requirements.

• Applications: Such power supplies are commonly used in electronics laboratories, educational institutions, workshops, and by hobbyists or professionals working with electronic circuits, testing electronic components, or powering devices that require stable and adjustable DC power.

• Safety Features: Quality power supplies often come with built-in safety features like overload protection, short-circuit protection, and overheating protection to safeguard both the power supply unit and connected devices.
