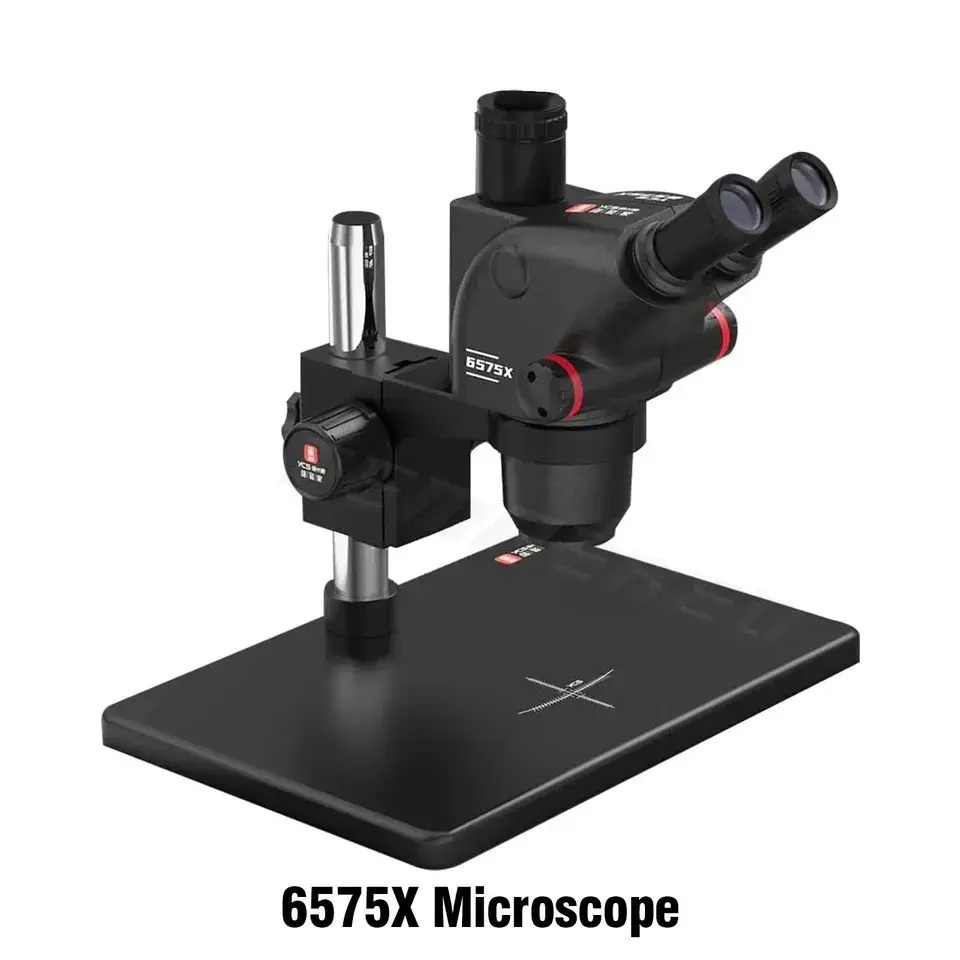

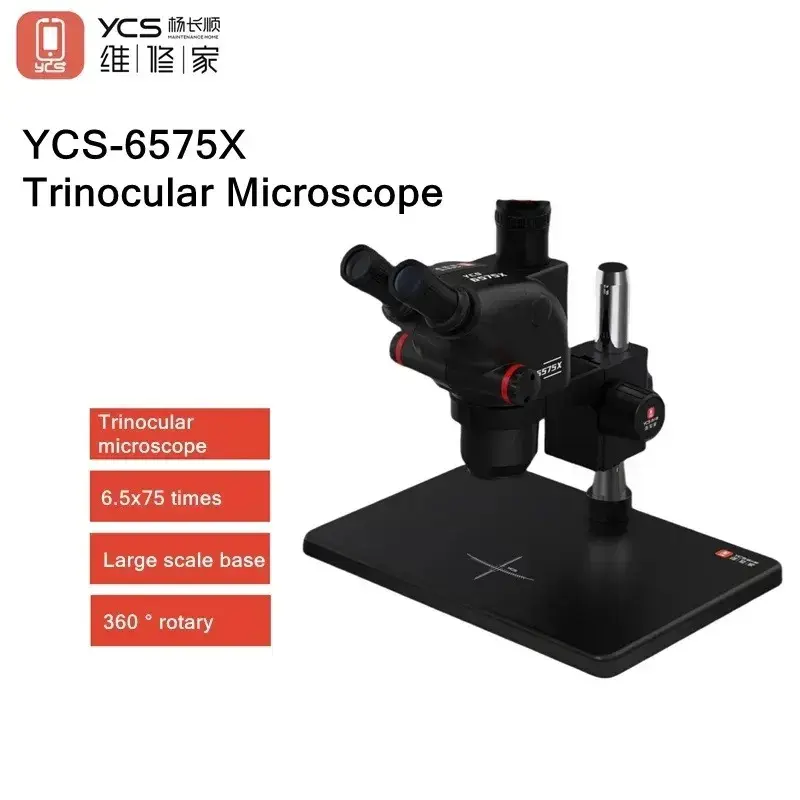

The YCS 6575X is a professional-grade trinocular stereo microscope used for micro-soldering, mobile phone repair, and other precision electronics work. It is recognized for its high magnification range and optical quality, making it a popular choice for technicians. The "trinocular" head allows for simultaneous viewing through the eyepieces and an attached camera.
Magnification: The microscope has a continuous zoom magnification ranging from 6.5X to 75X.
Optics: It comes with WF10X/23MM wide-field eyepieces for a large, clear viewing area and reduced eye strain during long working sessions.
Trinocular port: The third port on the head is for mounting a camera, with a standard 0.5X CTV adapter included. This adapter enables "synchronous zoom," which allows the camera feed on an external monitor to zoom in and out at the same time as the eyepieces.
Lighting: An integrated 144-LED ring lightprovides bright, shadow-free, and adjustable illumination of the subject.

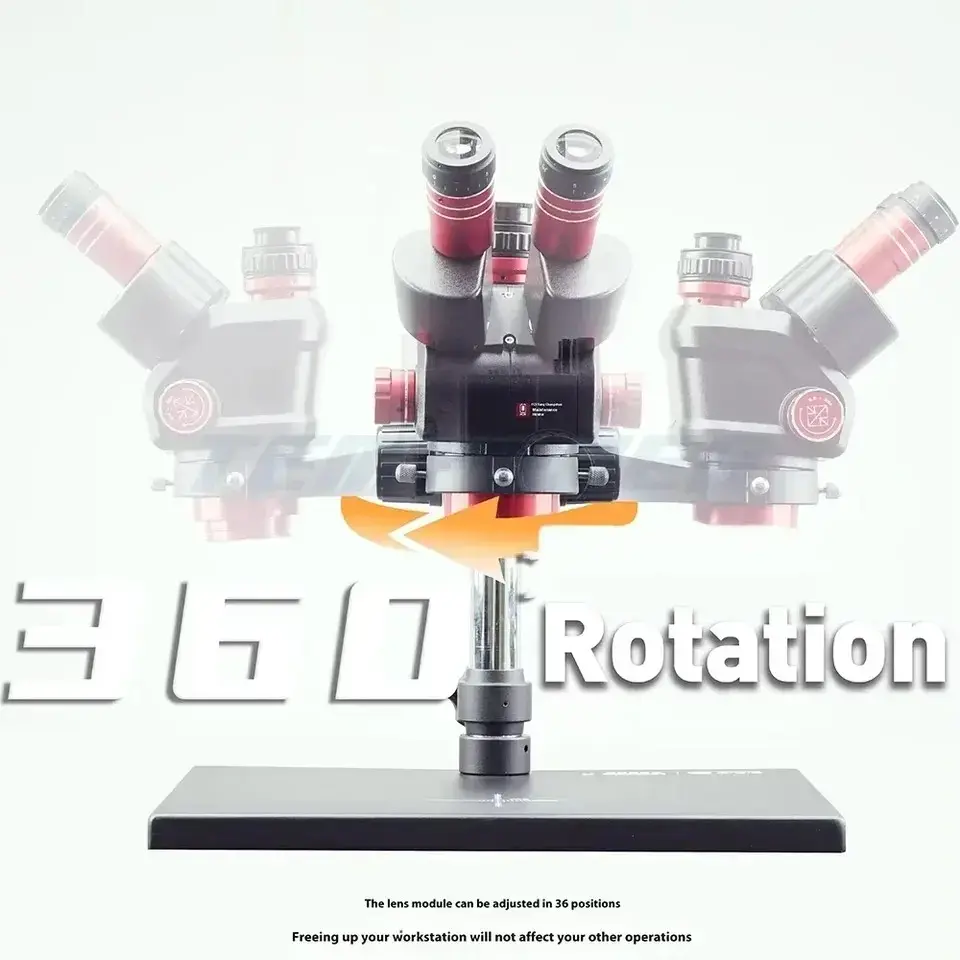

Ergonomics: The head can be inclined 45° and swiveled 360° for comfortable viewing from multiple angles.
Base: A large, stable metal base provides a sturdy platform for working on PCBs and other electronics.
Head: 45-degree inclined 360-degree swiveling trinocular.
Eyepiece: WF10X/23MM adjustable.
Objective: 0.65-7.5X.
Zoom Knob: Metal knob.
Camera connector: 0.5X CTV Lens Adapter (Monitor and eyepiece Synchronous zoom).
Light source: 144 LED ring light
Base pad: Large metal base.
