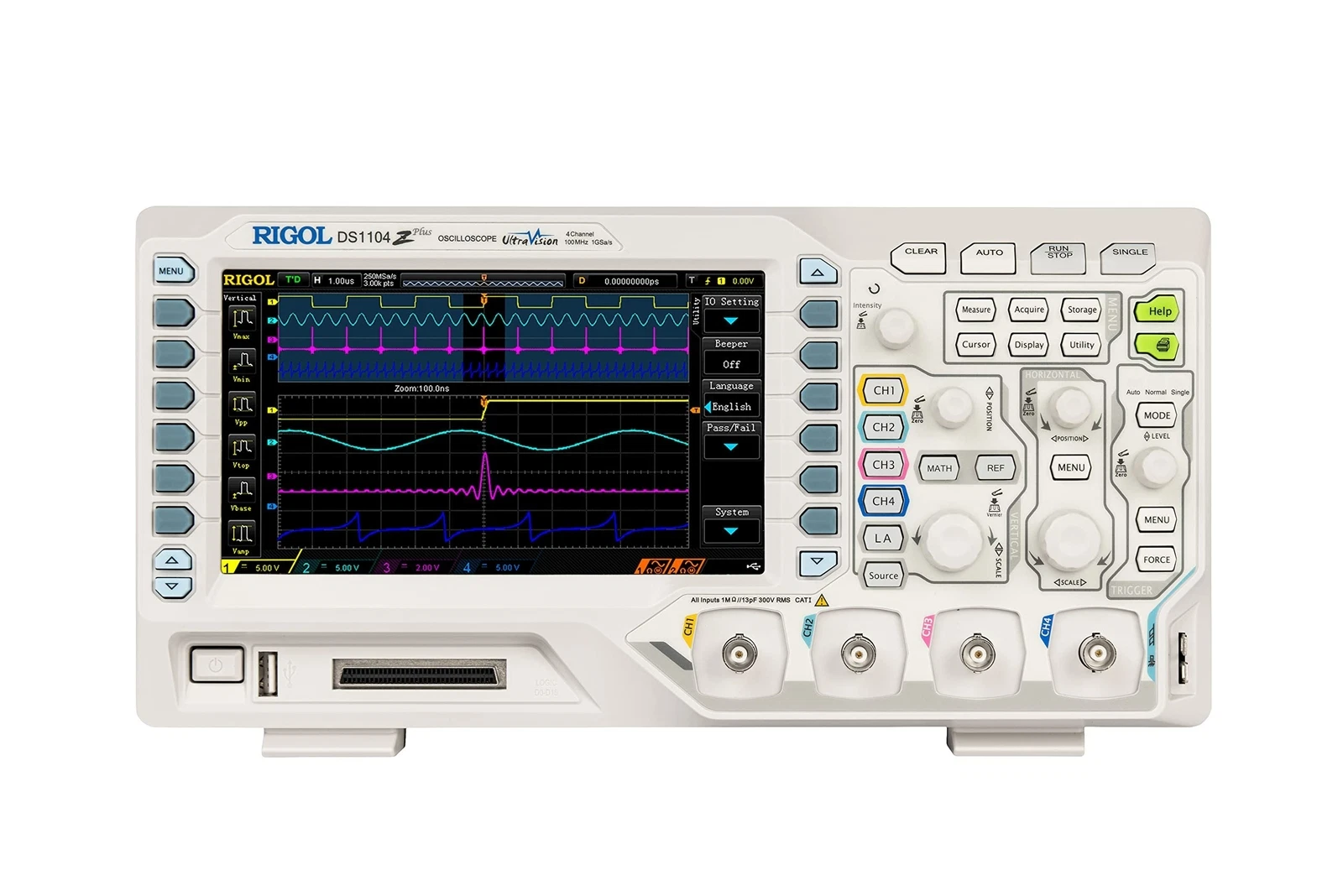

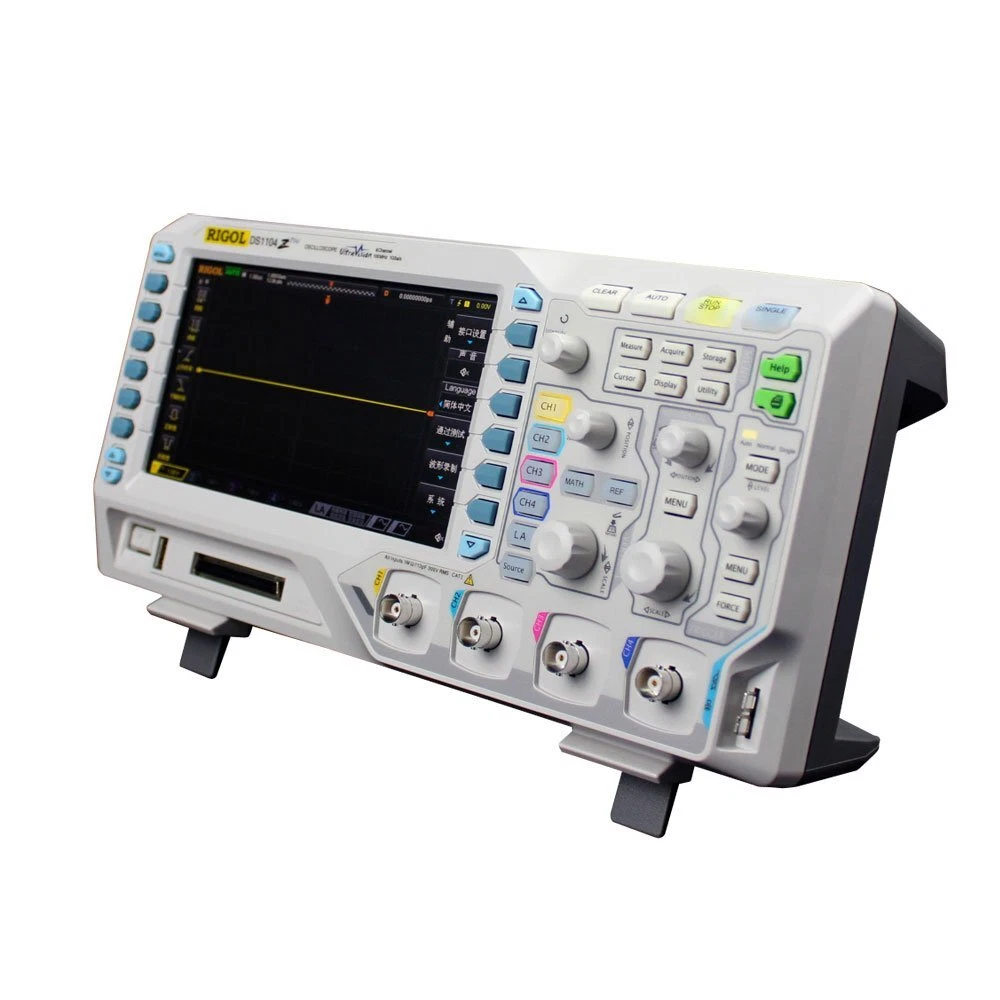

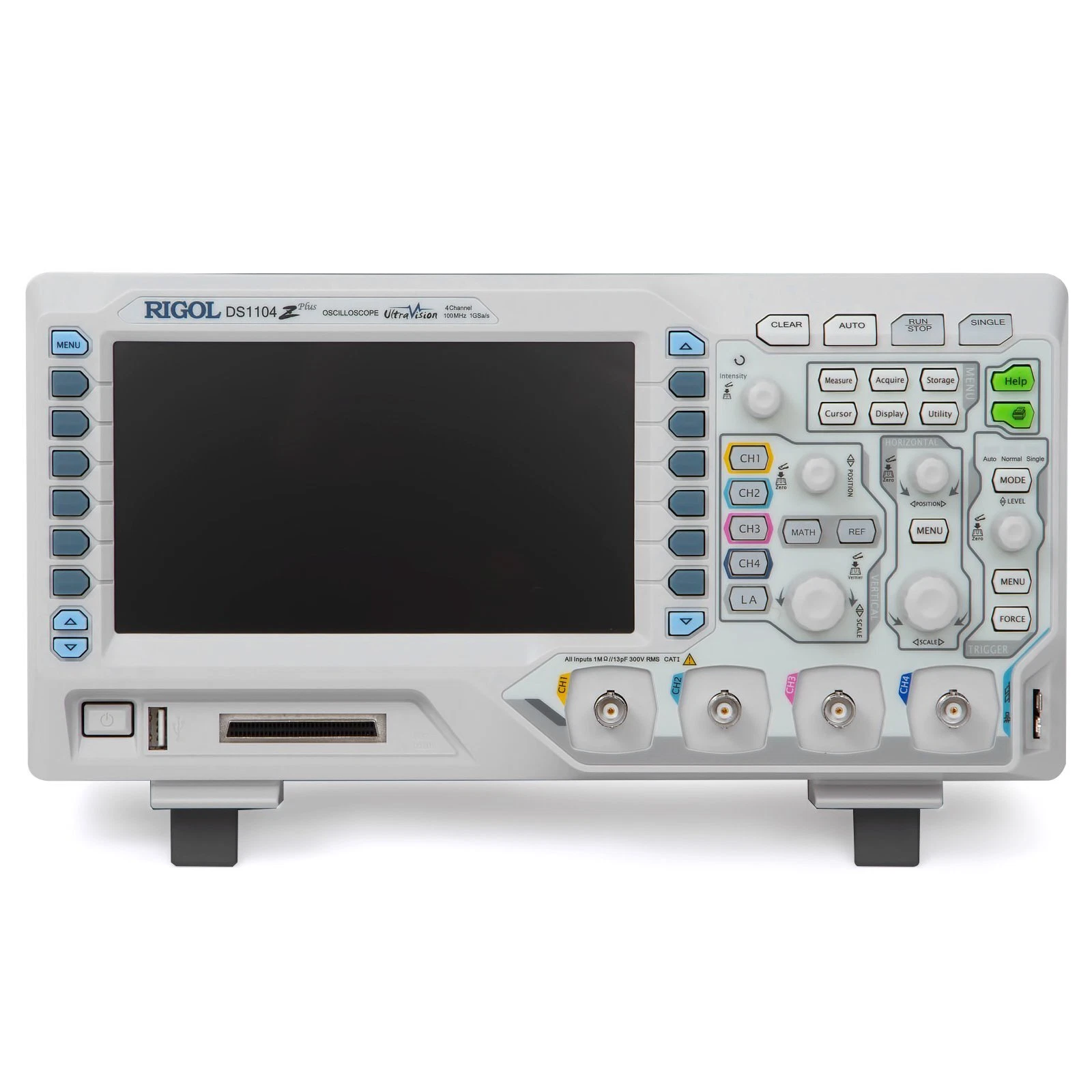

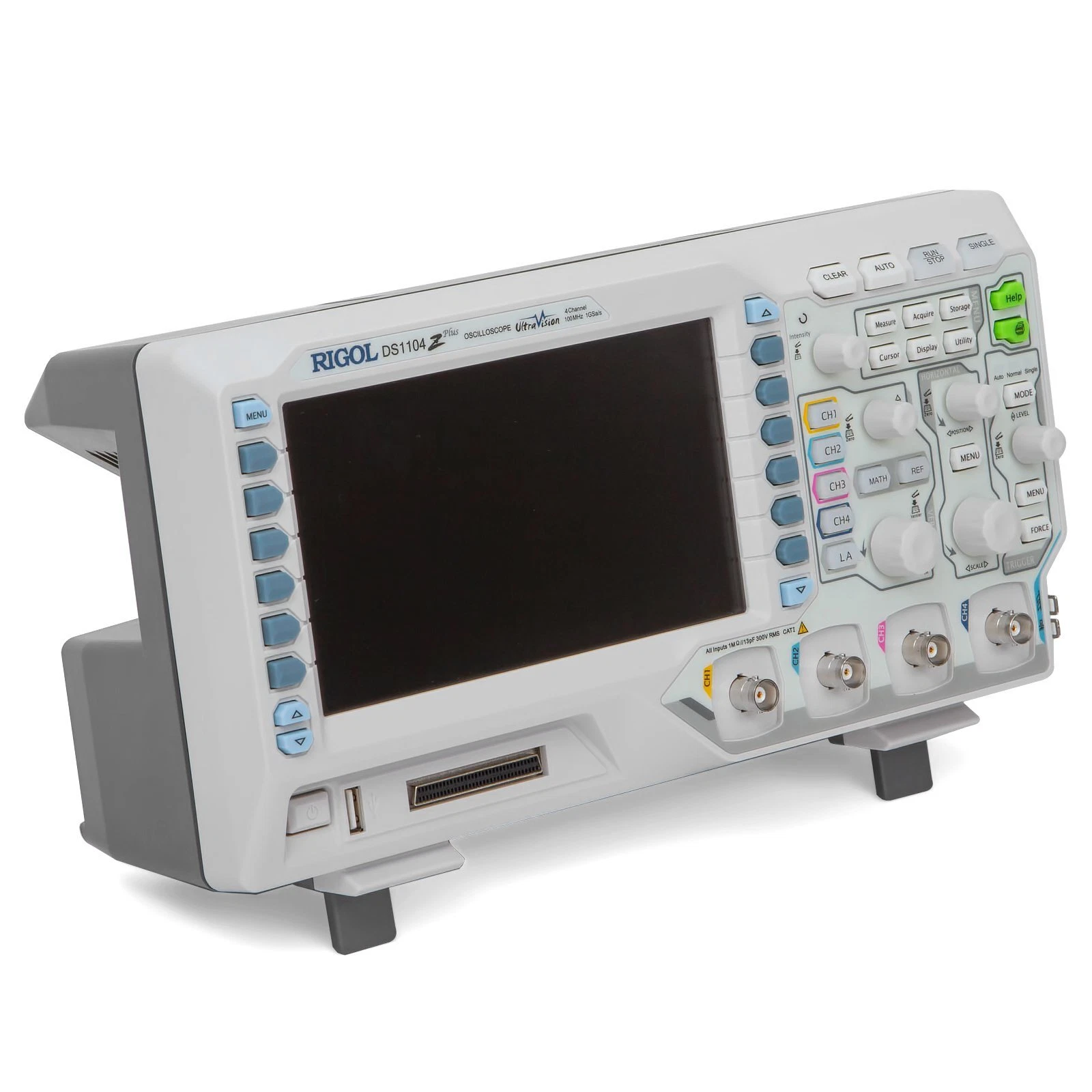

The Rigol DS1104Z Plus is a high-performance 4-channel digital storage oscilloscope designed for engineers, technicians, hobbyists, and educators who need reliable measurement and analysis of electrical signals. It delivers a 100 MHz analog bandwidth with a real-time sampling rate up to 1 GSa/s, making it well-suited for debugging, circuit design, and testing tasks.

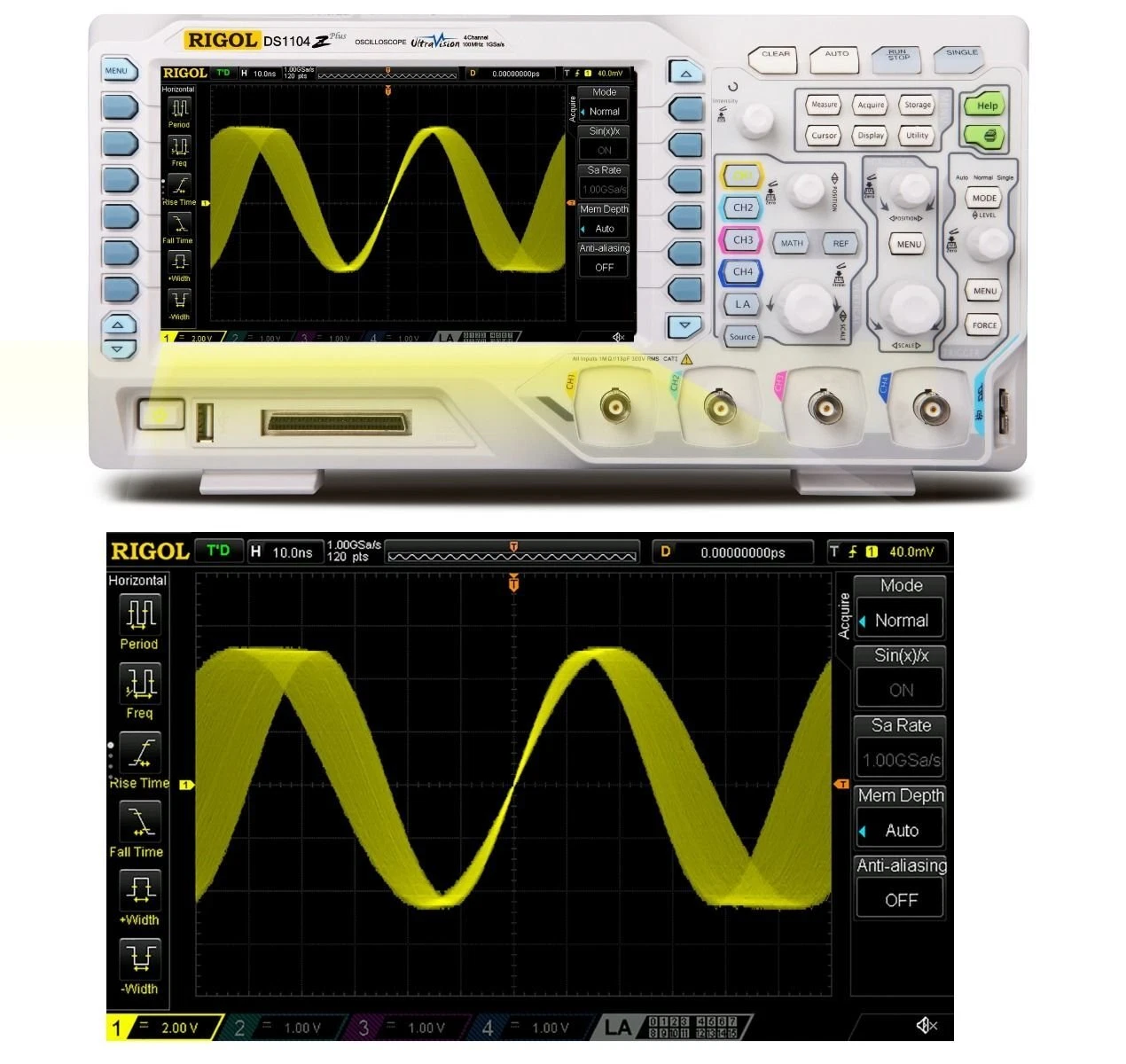

Featuring Rigol’s UltraVision® technology, this oscilloscope offers deep memory (up to 24 Mpts) and a high waveform capture rate (up to 30,000 wfms/s) to catch transient and complex signal details quickly and accurately. Its 7-inch WVGA color TFT display with intensity-graded waveform graphics makes readings easy to interpret.
The intuitive control panel and menu system simplify navigation, while advanced measurement functions (like FFT math, various triggers, and automatic measurements) help accelerate analysis. With optional upgrades (such as MSO logic analysis via an add-on probe), it can support up to 16 digital channels for mixed-signal debugging.

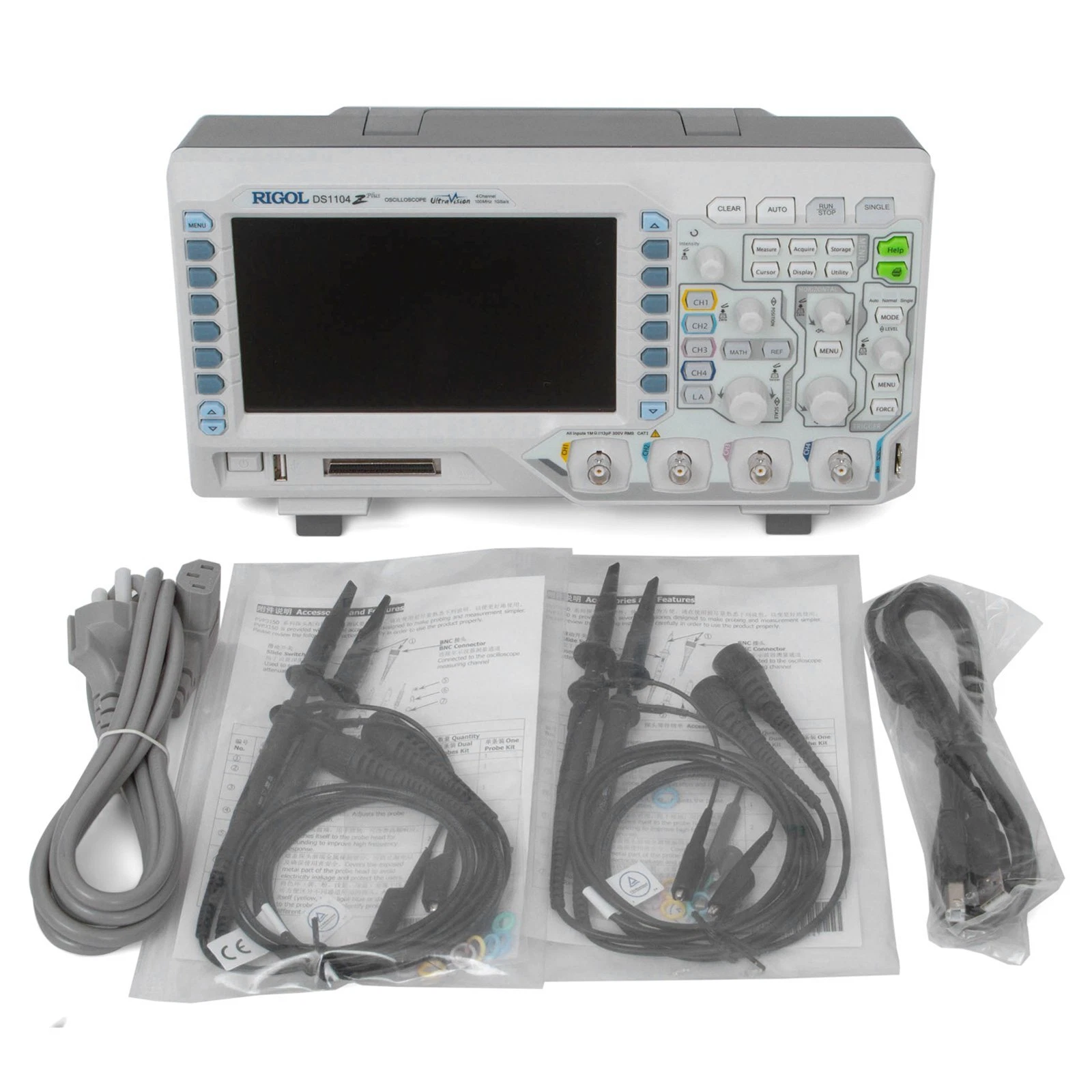

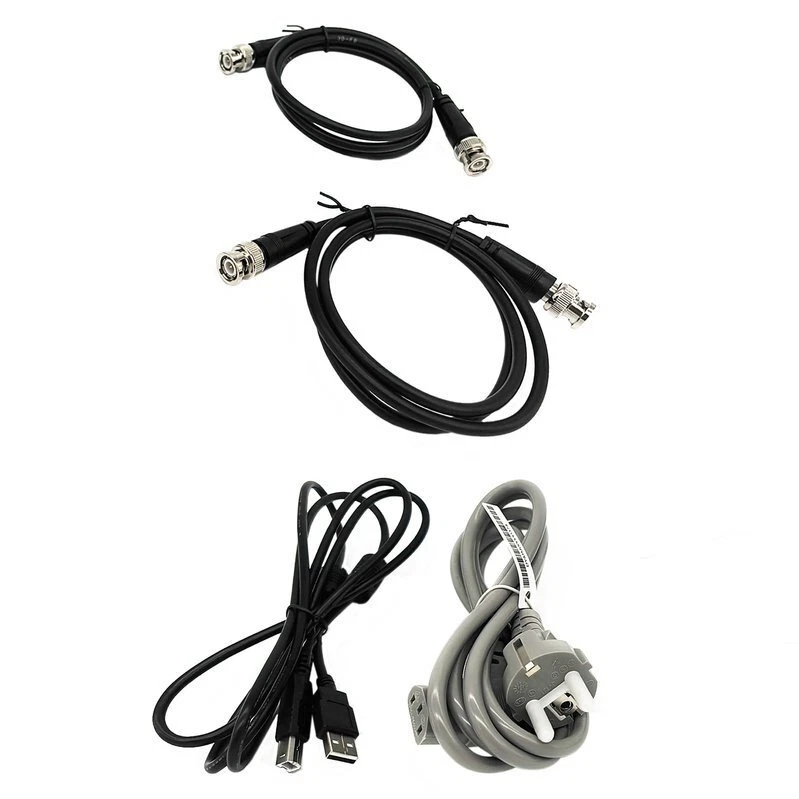

Connectivity includes USB (host & device) and LAN (LXI) interfaces, and the scope comes supplied with four passive probes, USB cable, power lead, and quick guide. Compact and lightweight, the DS1104Z Plus balances powerful performance with everyday usability for a wide range of electronic applications.
