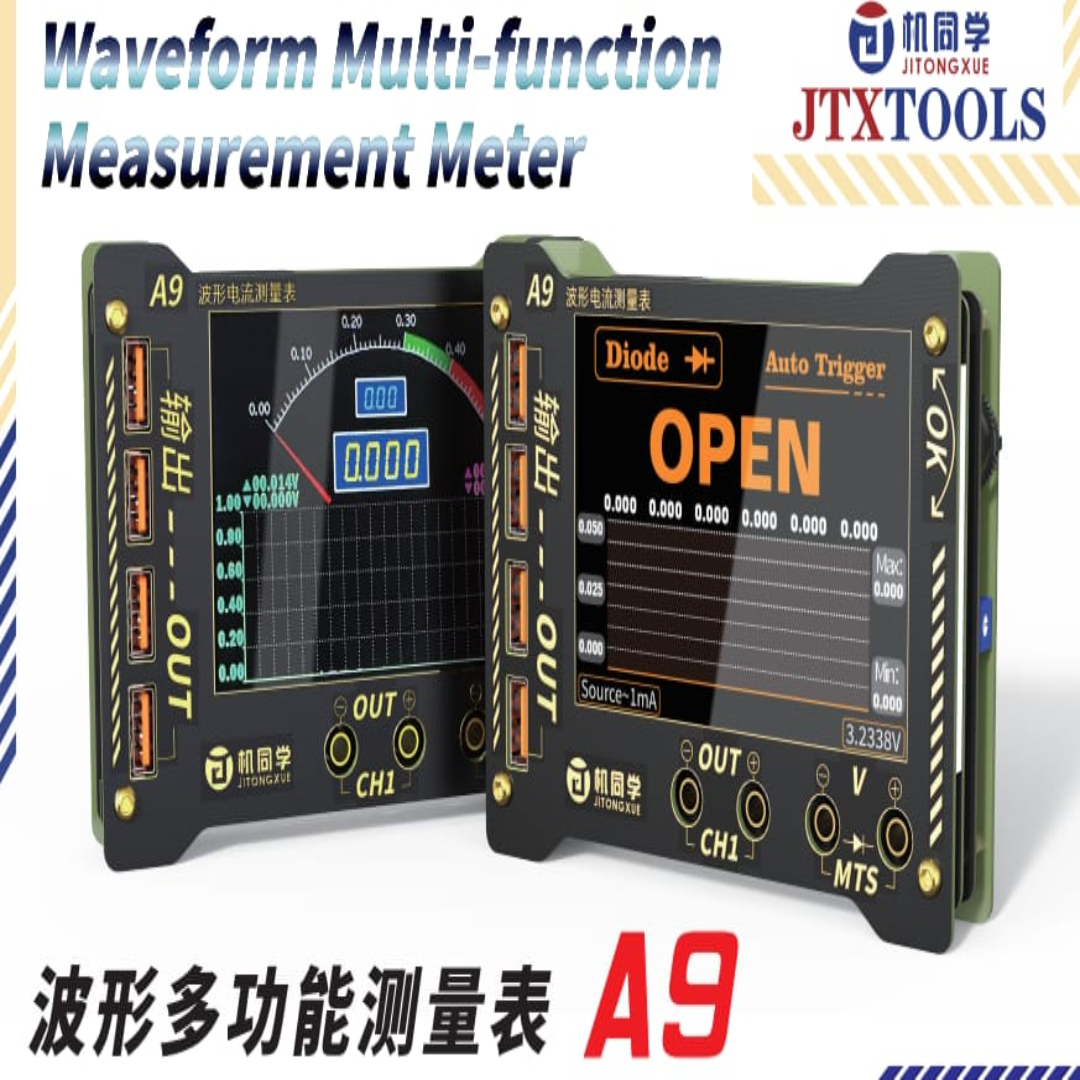

JTX A9 Waveform Multi-function Measurement Meter

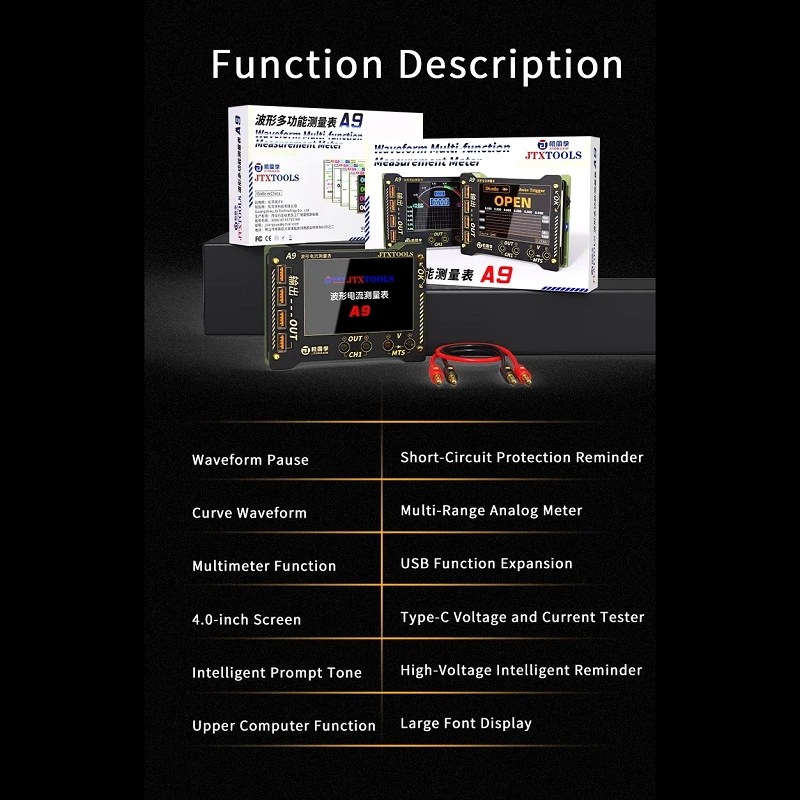

Function:

• Waveform Pause

• Short-Circuit Protection Reminder

• Curve Waveform

• Multi-Range Analog Meter

• Multimeter Function

• USB Function Expansion

• 4.0-inch Screen

• Type-C Voltage and Current Tester

• Intelligent Prompt Tone

• High-Voltage Intelligent Reminder

• Upper Computer Function

• Large Font Display



Features:

• Curve waveform multi-function measuring meter, high-precision sampling, digital display, diode accurate voltage measurement

• A9 curve waveform ammeter, complete function list, makes your maintenance work more handy and efficient, supports a voltage measurement range of 0-36V

• Pointer-curve mode: Highly intuitive, fast response, low interference. It intuitively reflects the change trend and magnitude of current, facilitating quick judgment of the approximate current range

• Diode mode: Clear and easy to read, fast diode response speed, numerical recording function, and PC screen projection support

• Waveform mode: It can accurately simulate various complex current or voltage change curves. The intuitive waveform display via curve changes improves the efficiency and accuracy of troubleshooting

• Voltage Measurement Mode: Rapid voltage measurement, real-time voltage curve measurement, voltage recording, and large-value projection via computer software

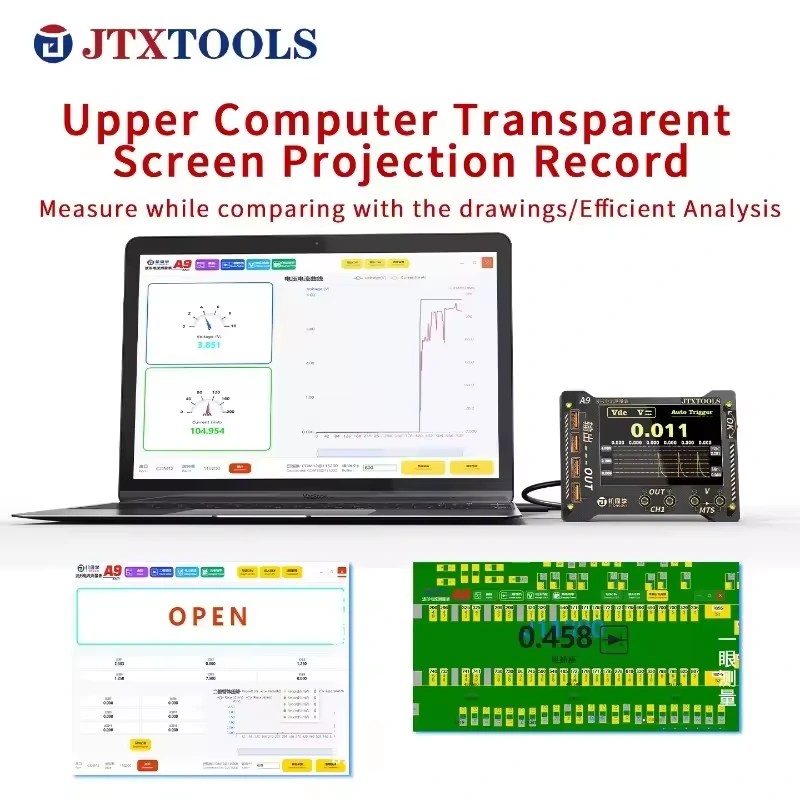

• Cross-dimensional combat equipment: Screen projection to PC instantly turns into a workstation, cloud-based firmware with unlimited evolutionary upgrades

• Millisecond-level instantaneous dynamic voltage measurement: Capture speed is 470% faster than traditional devices, and waveform accuracy is 3 times that of flagship models in the industry

• Ultra-high-speed diode scanning measurement: 0.01-second response scanning, leaves diode leakage nowhere to hide

• Industrial Vision Revolution: 4.0-inch HD Display 500nit sunlight visibility + 178 full-view waveform analysis

• Flexible combination compatible with fixed brackets: Adjustable freely up, down, left, and right-no more restrictions on work

Specifications:

• Input Voltage: DC 0~36V

• Current Accuracy: 0.5mA

• Detection Current: 0~8A

• Screen Size: 4.0 inches

• Protection Voltage: <60V

• Screen Resolution: 320*480

• Protection Current: <15A

• Device Power Supply: 5V 2A

• Output Voltage and Current of Diode Test: 0~2.8V

• Banana Plugs: 40V 8A

• Voltage Resolution: 1mV

• Current Resolution: 0.1mA
