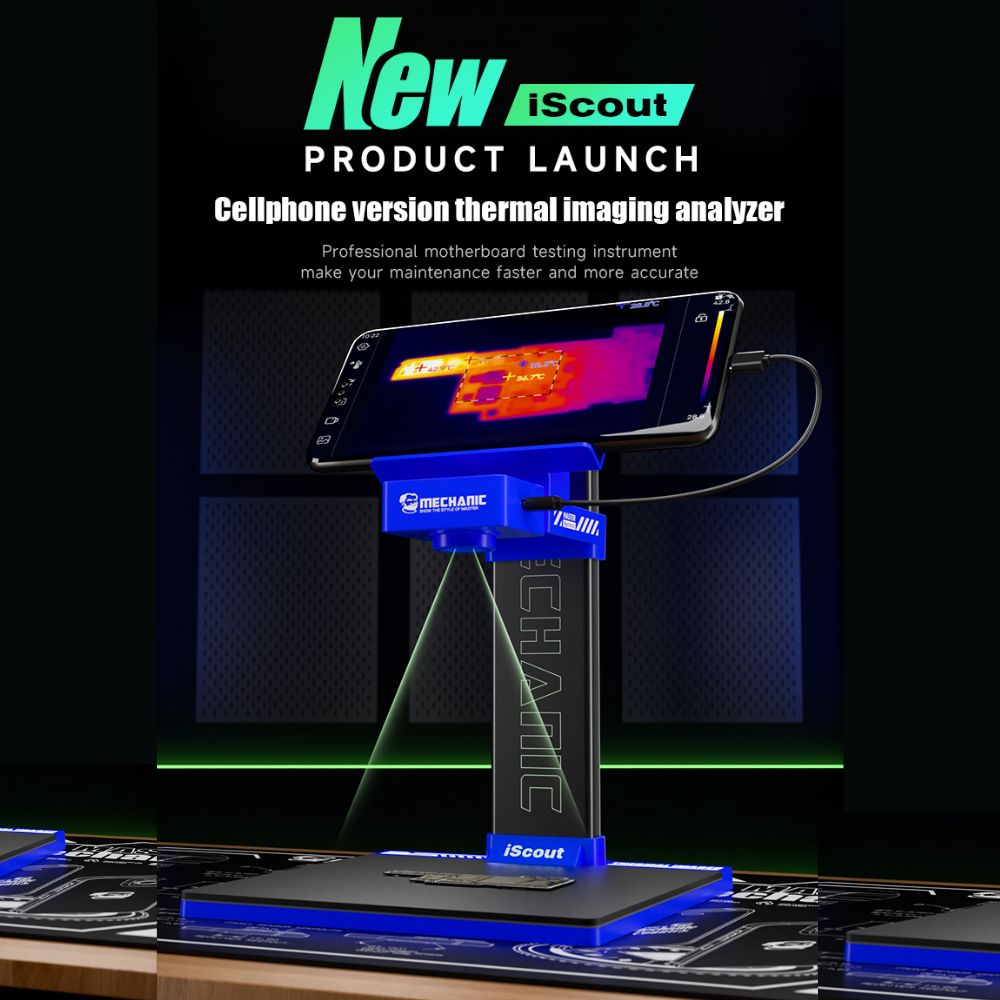

MECHANIC iScout 256x192 Infrared Thermal Imaging Camera for PCB Motherboard Fault Detection | 3D Thermal Analyzer
Quickly locate hidden faults on smartphones, tablets, and laptop motherboards with the MECHANIC iScout 256x192 Infrared Thermal Imaging Camera. Designed specifically for professional repair technicians, this advanced thermal imager delivers high-resolution 3D thermal field distribution for fast and accurate PCB troubleshooting.
Key Features:

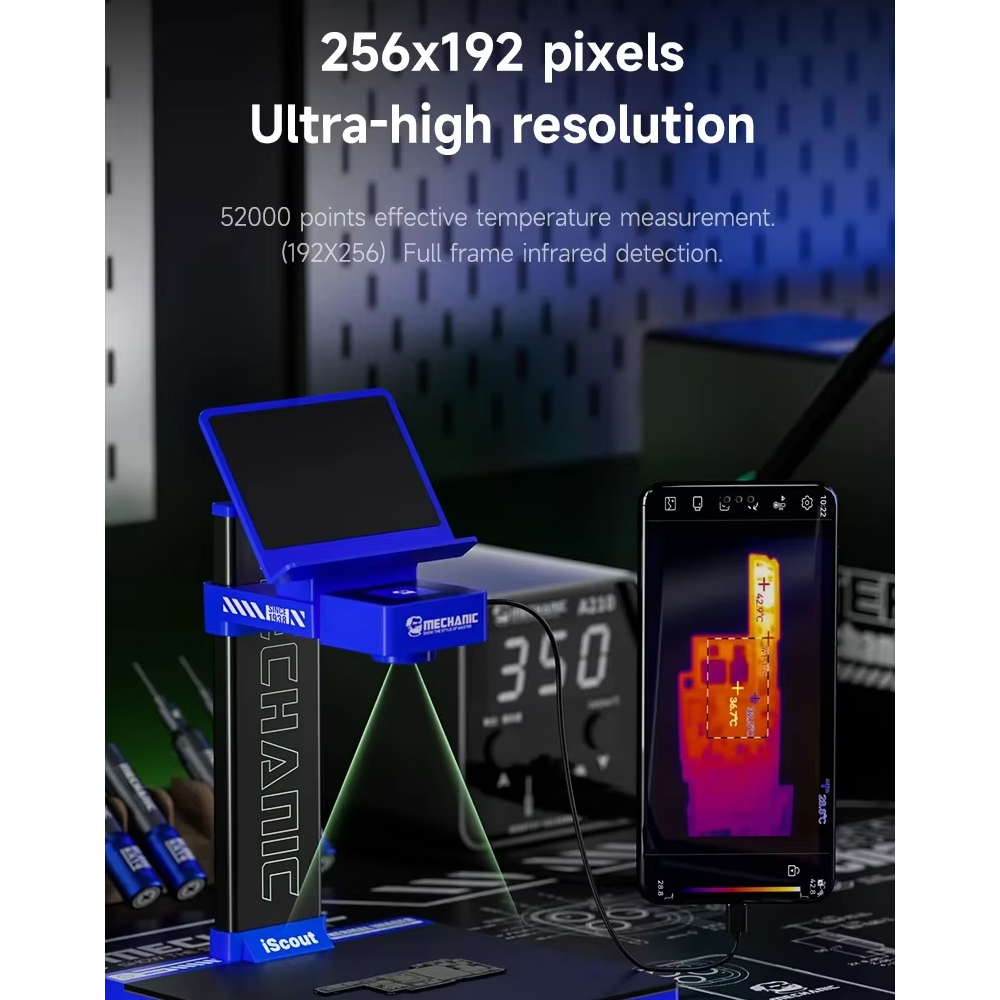

• High Resolution 256x192 Infrared Sensor — Over 52,000 effective temperature measurement points for precise and detailed thermal imaging.
• 3D Thermal Field Distribution — Visualizes heat patterns in 3D, making it easier to identify overheating components, short circuits, and leakage issues.

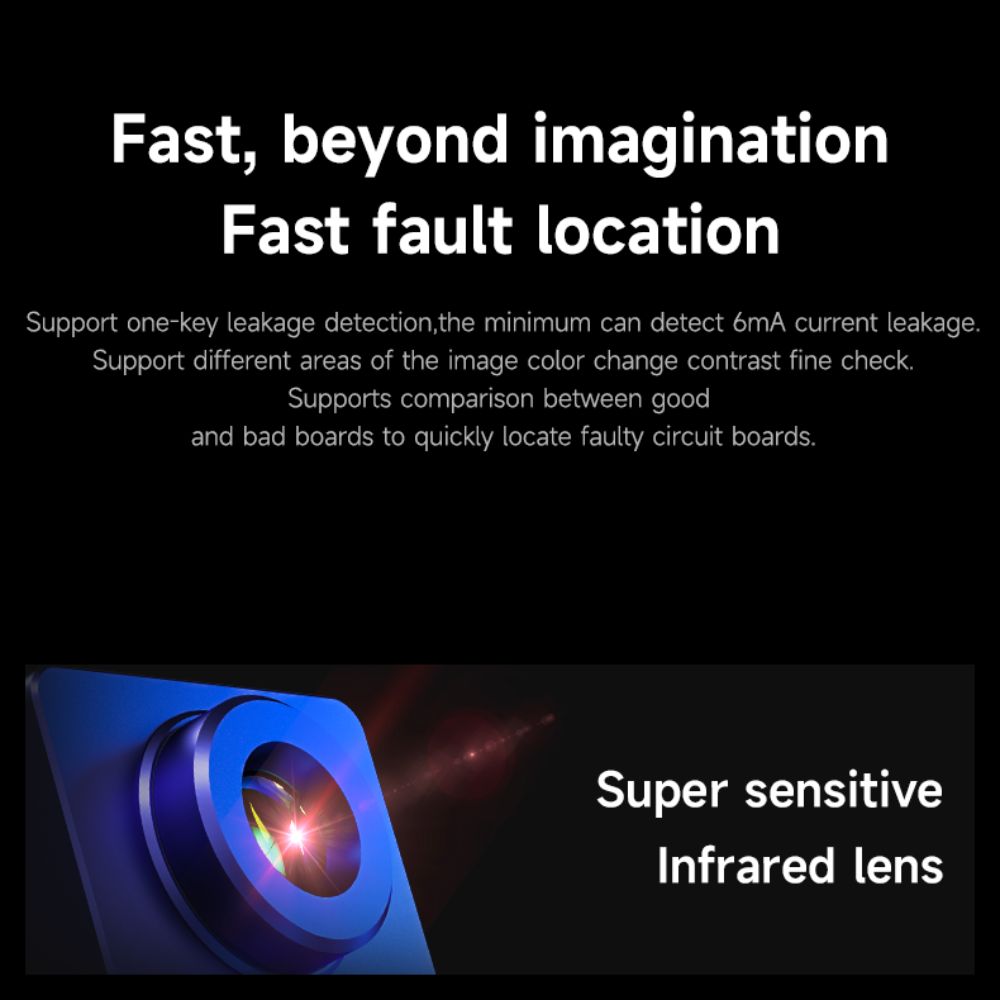

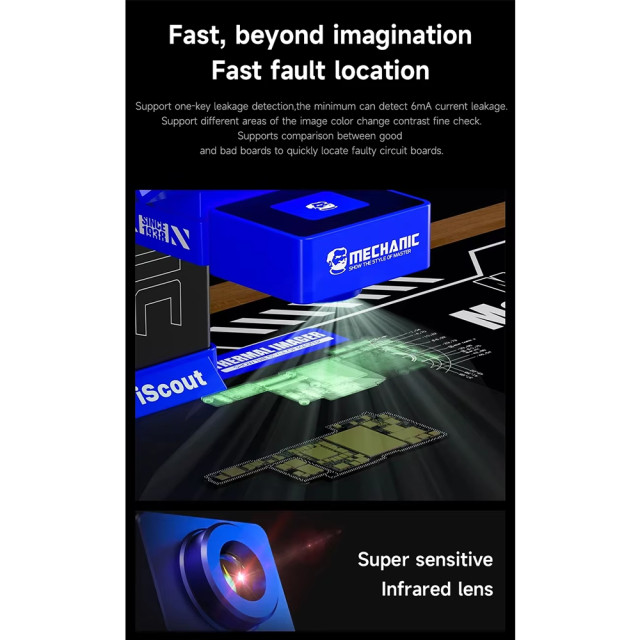

• One-Key Leakage Detection — Detects current leakage as low as 6mA instantly, saving valuable repair time.
• Wide Temperature Range — Measures from -15°C to +600°C, perfect for electronics diagnostics.

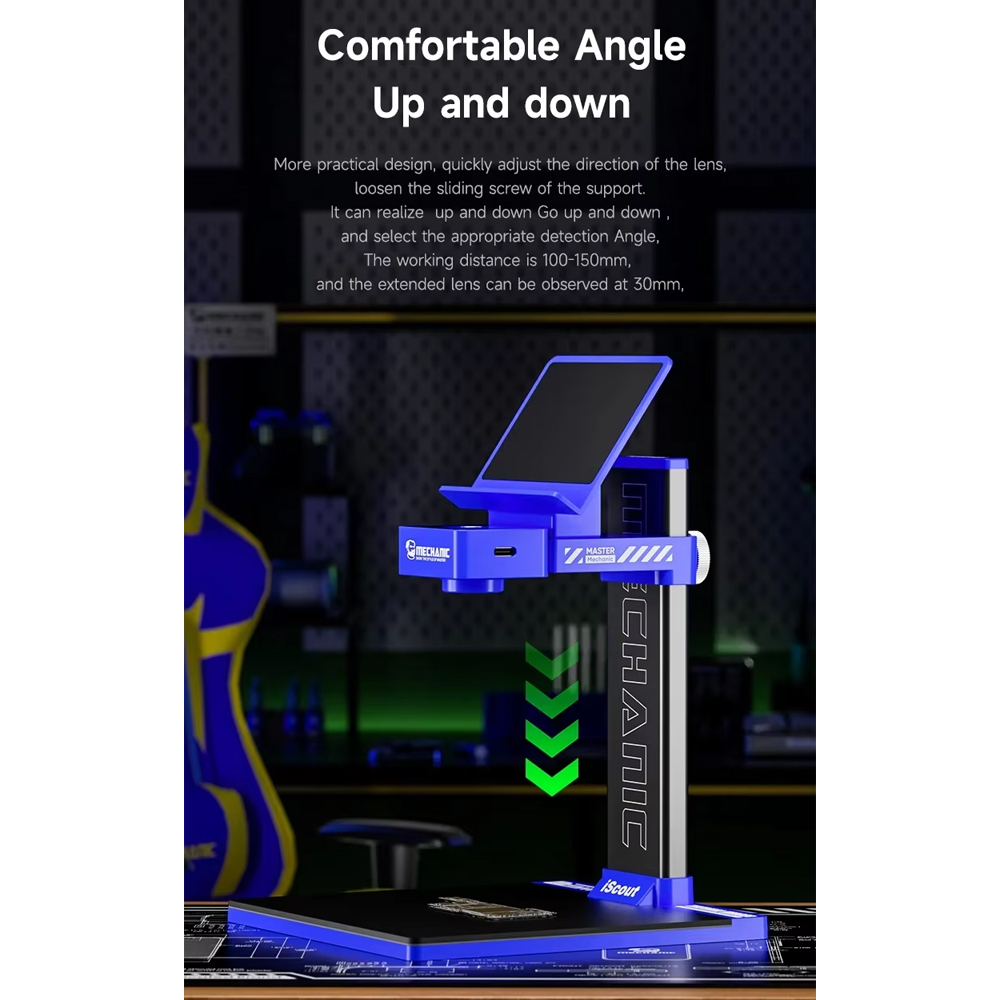

• Optimal Working Distance — 100–150mm (with macro lens support for closer inspection).
• Multi-Platform Support — Compatible with Windows and Android via Type-C interface with dedicated software for advanced analysis.

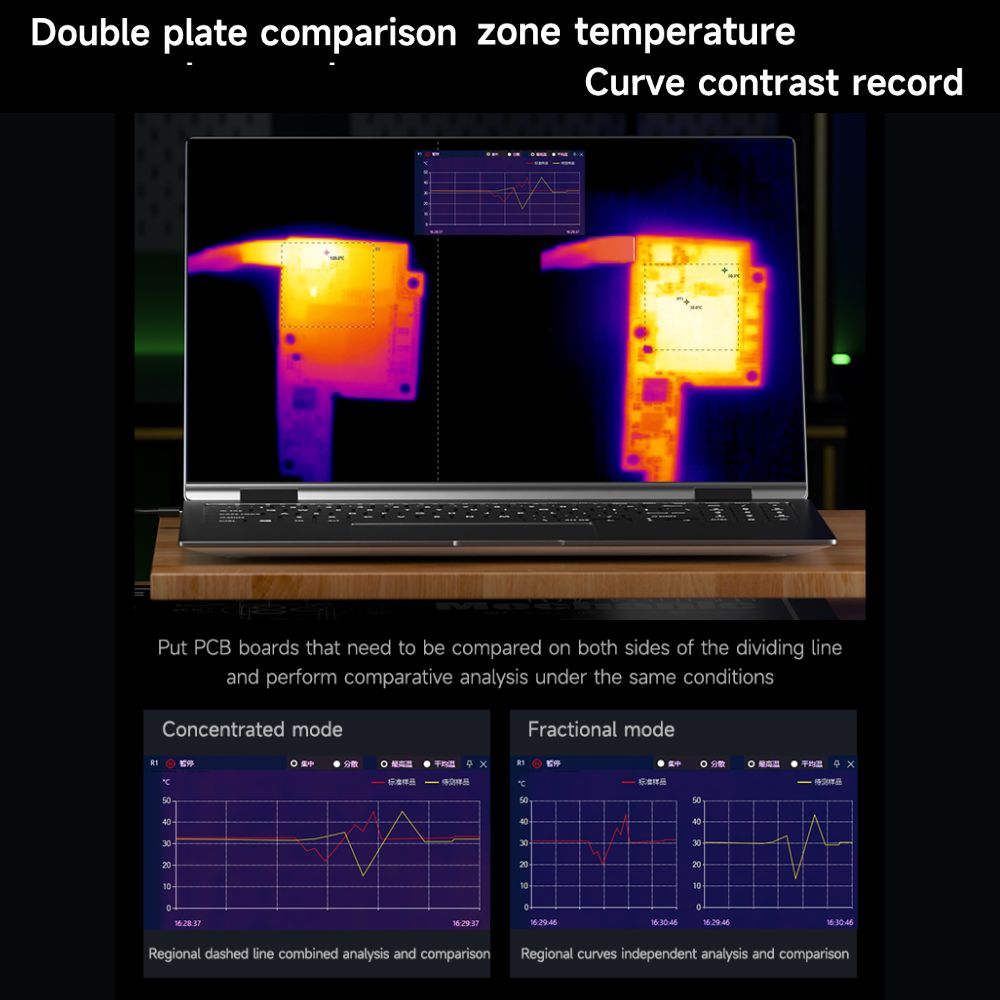

• Color Contrast & Area Analysis — Supports detailed image comparison and fine area checks for deeper fault investigation.
• Professional Stand & Macro Lens — Includes accessories for stable positioning and close-up work.
Ideal For:
• Mobile phone & tablet repair shops
• Laptop and motherboard repair
• Diagnosing short circuits, CPU/GPU issues, battery drain, and component failures
• Professional technicians who need fast fault location without trial-and-error
Benefits:
• Significantly reduces diagnostic time compared to traditional multimeters.
• Non-contact, safe testing method that prevents further damage to the board.
• Helps achieve higher repair success rates and customer satisfaction.
• Compact, portable, and easy to integrate into any repair workflow.
Package Includes:

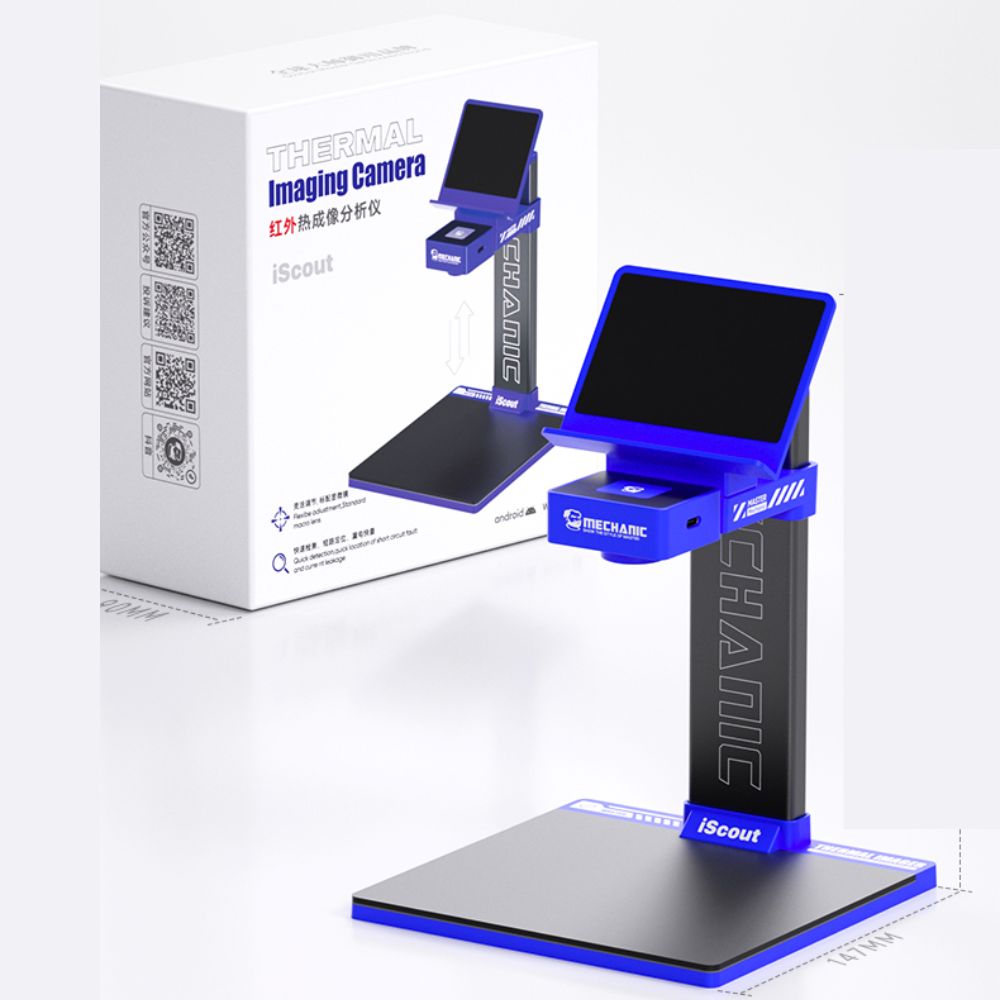

MECHANIC iScout Thermal Imaging Camera, macro lens, stand, Type-C cable, software (Windows/Android), and user manual.
Take your repair capabilities to the next level with the MECHANIC iScout Thermal Camera — the smart choice for accurate, professional-grade PCB fault detection.
