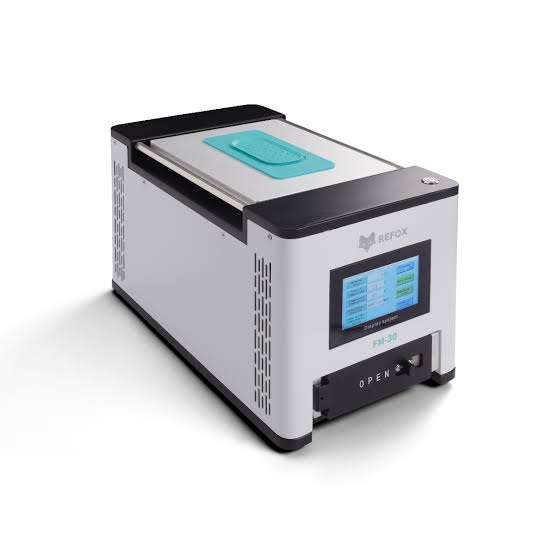

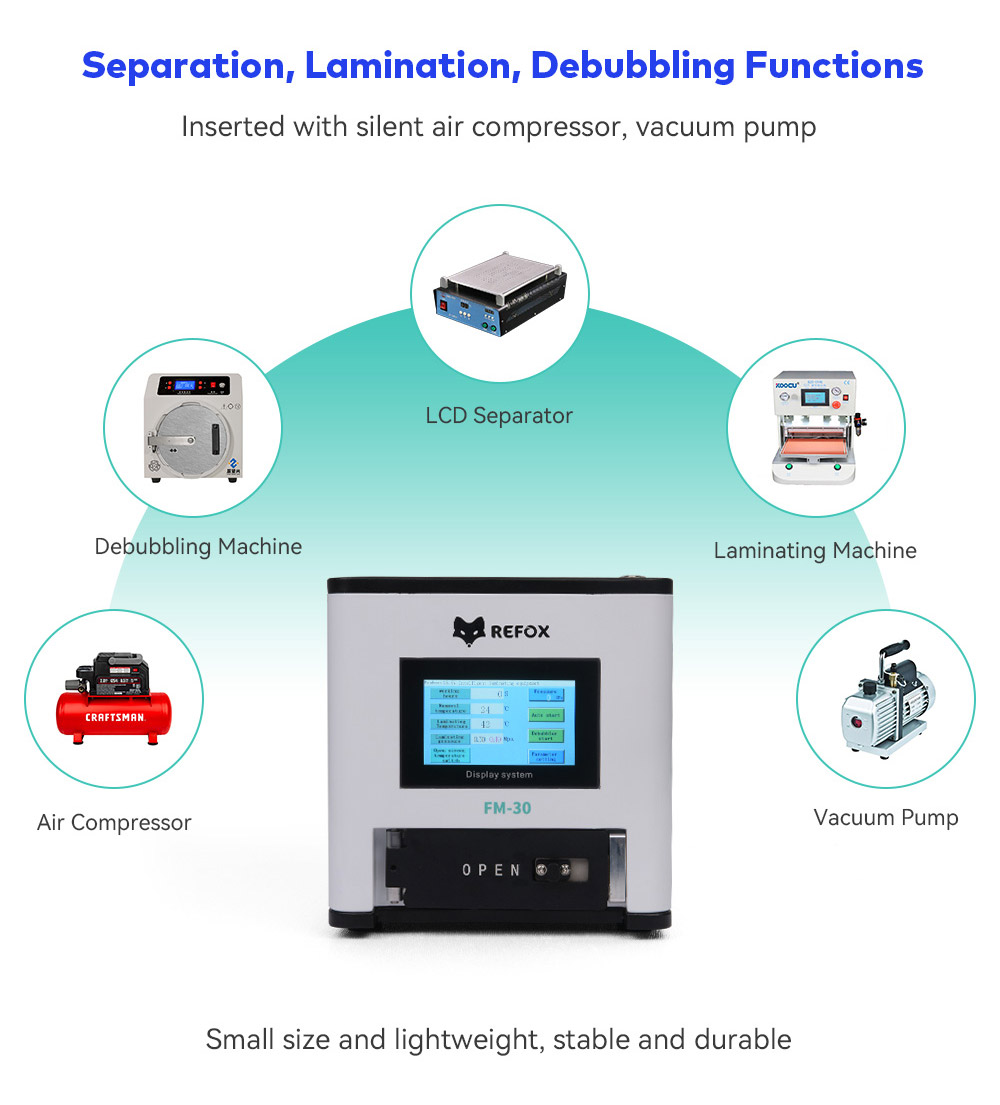

REFOX FM-30 is a 3-in-1 mini desktop laminating machine with a separator and debubbler that requires no external air compressor or vacuum pump. Typically, it is used to repair and refurbish mobile phones with high levels of efficiency and accuracy. Flat-screen mobile phones (such as Apple iPhones), tablets, and Apple Watches can be separated (max 9.7 inches), laminated (max 7 inches), and debubbled (max 7 inches) with this device
Features | FM30 Lamination Machine
- Small size, lightweight, stable and durable
- Support the separation of flat-screen mobile phones and tablets below 9.7 inches
- Smart touch operation system, time and temperature are adjustable
- Separating heats up quickly and evenly with solid suction
- Laminating efficiently without bubbles, laminating, and debubbling simultaneously
- Easy operation, one-button to start, exempt from adjustment
Applications For FM30 Laminating Machine
1. Broken Screen Repair
If the outer glass of the screen is seriously damaged or the touch layer is damaged, you can use this machine to replace the cover.

2. Screen Refurbishment
When the outer glass is damaged and the LCD/OLED is in good condition, use this machine to replace the glass layer to repair the screen.

Package List
- FM-30 Desktop Laminating Machine*1
- Suction Pad*1
- Lamination Mat*1
- Power Cable*1
- User Manual*1
Packing
EPE Foam + Plastic Film + Wooden Box
The Attentions For Using the REFOX FM30
- Upon receiving the machine, it is recommended to run a test.
- Clean the separating platform and the laminating & debubbling cabin before use.
- Curved screens cannot be bonded to this device.
- Laminating pressure should not be too high or too low.
- Do not click the "Exhaust" button when the machine is working.
- For bubble removal, high pressure should be applied.
- Don't use a high removal temperature, or the bubble will probably return.
- Make sure the cabin door is locked well before removing the bubble.
- Regularly clean the machine to prevent debris and dust accumulation.
- Some 220V FM30s are required to install the oil-water separator before use, or the tube might blast or drop.
Recommended Accompanying Items For FM30 Desktop Lamination Machine
After-Sales Service
Please feel free to contact us for any problem at any time: paranaindia@gmail.com
