Description

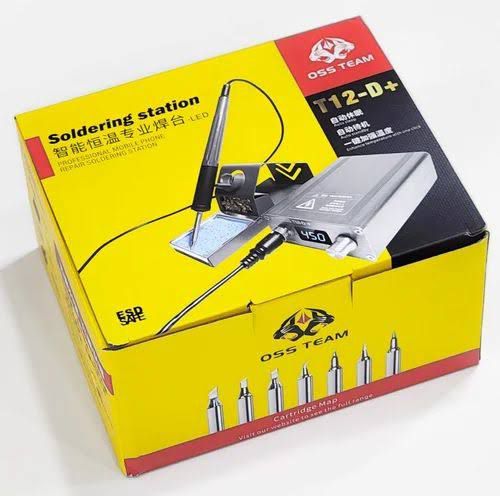

The OSS T12D Plus soldering iron station is a high-quality tool for soldering applications. It provides precise temperature control and excellent heat transfer, allowing for efficient and reliable soldering. The station features a digital display for easy temperature adjustment and monitoring. Its ergonomic design ensures comfortable use during extended soldering sessions. The T12D Plus is known for its quick heating time and durable construction, making it a popular choice among professionals and hobbyists alike. Whether you're working on electronics, circuit boards, or other soldering projects, the OSS T12D Plus soldering iron station offers the performance and reliability you need.
1 Normal use mode: when the machine is on, rotate the encoder left and right to directly adjust the temperature value (150-450 degrees Celsius).
2. One-button enhancement mode: under normal use, press the encoder to enter the enhancement mode (rapid temperature rise of 50 degrees Celsius), the dot in the lower right corner of the digital tube flashes, and the duration is 60 seconds by default (time can be set). After 60 seconds, the normal temperature will be automatically restored after two beeps.
3. Function setting mode: when the machine is on, press the encoder for 1 second and then release it to enter the parameter setting function and rotate. Encoder selection options: P01, P02, PO3, P04, click the encoder cycle function options. Long press the encoder button for 3 seconds and it will automatically save and exit the setting interface,
the soldering iron is not used, the default is 60 seconds to enter the standby mode, operate the encoder, or pick up the handle to resume the heating mode. When the soldering iron does not enter the sleep mode by default for 3 minutes, operate the encoder or pick up the han resume the heating mode.
Power 72W, Temperature 150°C-450°C, Automatic Sleep, 6 Seconds Tin, Rapid Temperature Recovery, Adjustable Sleep And Standby Time, Accurate Temperature Control, Suitable For Mobile Phone Maintenance Flying Line, Chip Removal, Etc.
Working Ac Voltage: 100V - 240V, 5A, 72W,
Temperature Setting Range: 150 - 450 Degrees
Feature:
Pid Temperature Control: The Soldering Station Adopts The Advanced Pid Algorithm For Temperature Control, And The Temperature Rises Quickly Without Losing The Accuracy, No Matter The Size Of The Solder Joints Can Be Easily Handled.
Temperature Enhancement: When The Welding Process Encounters A Large Solder Joint, The Temperature Of The Soldering Tip Is Temporarily Increased, And Then The Normal Temperature Is Restored To Make The Soldering Smoother. Turn The Knob To The Right Quickly In Normal Mode To Turn This Feature On.
Manual Standby: In Order To Save Energy And Extend The Life Of The Tip, The User Can Manually Operate The Soldering Station Into Standby Mode. Turn The Knob To The Left Quickly To Enter Standby Mode In Normal Mode.
Beep Reminder: When The Soldering Station Switches Between Various Modes, The Built-In Buzzer Emits Different Rhythm Sounds. The User Can Master The Operation Of The Soldering Station Without Having To Watch The Screen.
Operation Step:
Normal Use Mode: In The Power On State, The Left And Right Rotation Editor Directly Adjusts The Temperature Value (150-450 Degrees Celsius)
One-Button Reinforcement Mode: Under Normal Use, Press The Encoder To Enter The Temperature Enhancement Mode (Rapid Temperature Rise 50 Degrees Celsius), The Dot In The Lower Right Corner Of The Digital Tube Flashes For 2-3 Seconds Until The Set Temperature Enters The Normal Heating Mode, The Duration Defaults. One Minute, After One Minute, The Two Automatically Return To Normal Temperature.
Function Setting Mode: When The Power Is On, Press The Encoder For 1 Second And Then Release, Enter The Parameter Setting Function, Rotate The Encoder To Select The Setting Options: P01, P02, P03, P04, Click The Encoder Cycle Function Option. Press And Hold The Encoder Button For 3 Seconds, Automatically Save And Exit The Setting Interface After A Click.
Package Includes:
1 X T12-D Digital Controller Station
1 X T12 Handle
1 X T12-Bls Tip
1 X Holder
