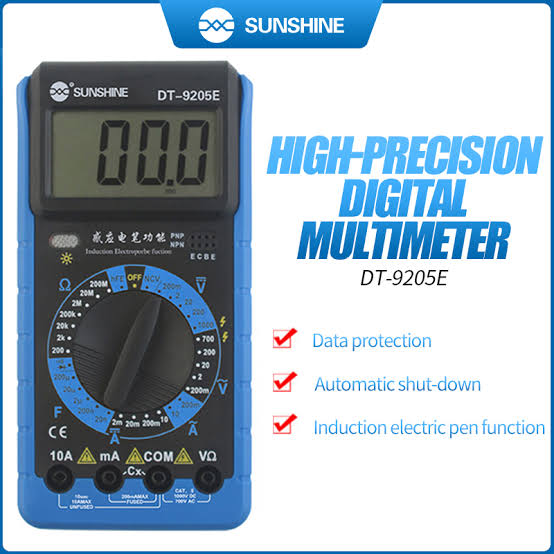

SUNSHINE DT-9205E digital multimeter is easy for operating, accurate readings, full-featured, compact, easy to carry. Pocket-type battery power to do large-screen LCD digital multimeter for engineering design, laboratory, pilot production, factory affairs, field operations and industrial maintenance applications.





The multimeter has the following main features:



1. CMOS integrated circuit. Double integral principle of A / D conversion, automatic zero, auto polarity selection, over range indication.



2. When the line through a short beep sound tests are shown dike



3. The new SUNSHINE DT-9205E digital multimeter, the appearance of new, more in line with international safety standards. Adds automatic shutdown, beep sound Japanese configuration in line with international standard test leads.



This multimeter has the following characteristics:



1. CMOS integrated circuits, principles of double integral A / D conversion, automatic zero, auto polarity selection, over range indication.



2. LCD screen with high contrast 70 × 40-mm screen, word up to 25 mm. Required by the viewing position, the display screen can be visual angle of about 70 °, in order to obtain the best effect was observed.



3, with automatic shutdown, about 25 minutes after the power is automatically cut off power to prevent the meter off after use forgotten power. Repeat power switch operation, we can continue to boot.

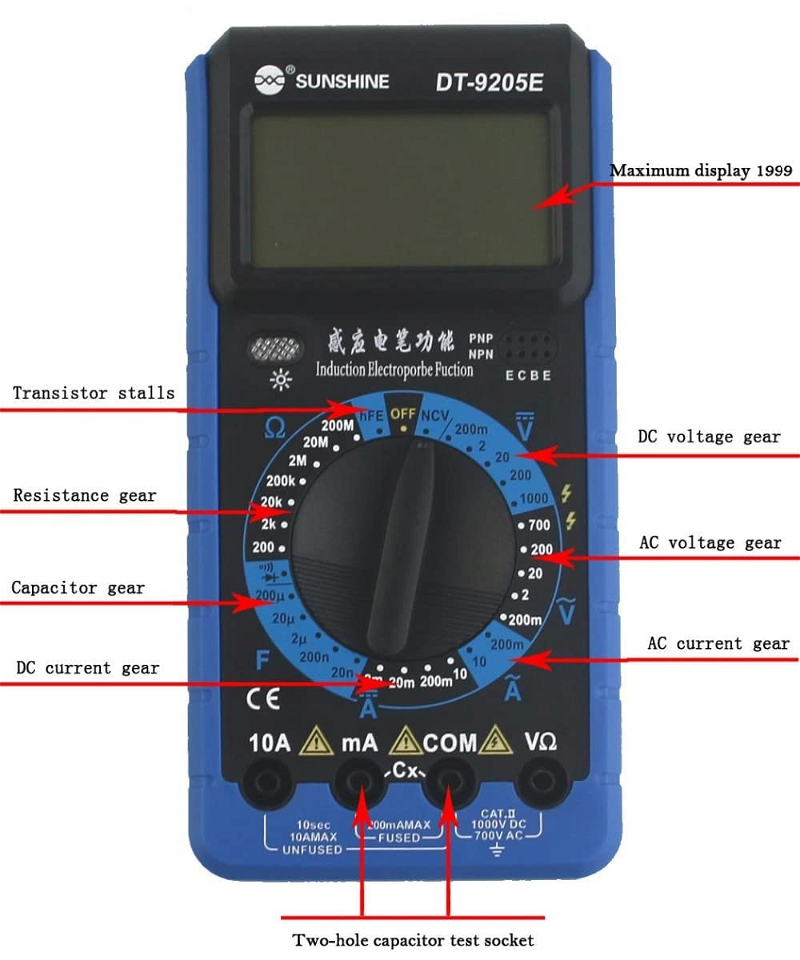

4, the new optimized design of highly reliable range / function rotary switch structure. Use 32 stalls, more effectively avoid misuse, attention to maintenance.





Specifications:



DC Voltage: 200mV-1000V; Accuracy: ±(0.5%+1dgt)

AC Voltage: 2V-750V; Accuracy: ±(0.8%+3dgt)

DC Current: 2mA-20A Accuracy: ±(0.5%+1dgt)

AC Current: 20mA-20A Accuracy: ±(1.0%+3dgt)

Resistance: 200Ω-200MΩ Accuracy: ±(0.8%+1dgt)

Capacitance: 20nF-200uf Accuracy: ±(4.0%+3dgt)

Diode Test: Yes

Transistor Test: Yes

Temperature Test: -40°C-1000°C

Hertz Test: 200KHz

Continuity Buzzer: Yes

Auto Power Off: Yes

Power Supply: 9V Battery 6F22 (not included)

Maximum Display: 1999

Product size: approx. 190*90*30mm/7.48*3.54*1.18''

Net weight: approx. 229g





Feature:



• Fuse protection; Built-in fuse, with overload protection; Prevent misoperation from burning the meter

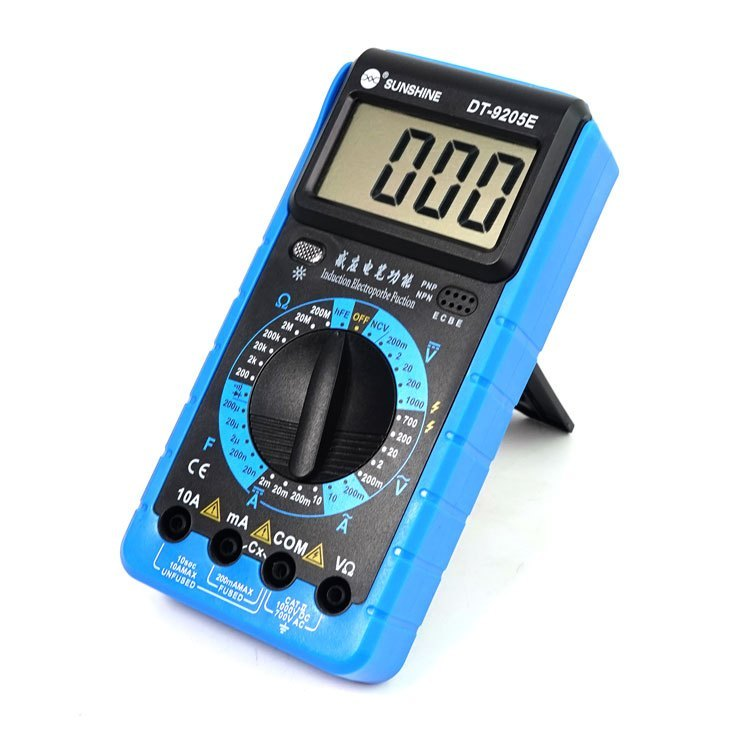

• The body comes with a support frame, 45° reading display
• NCV wireless measurement/non-contact measurement, more convenient
• Triode measurement/insert the triode pin into the corresponding hole position, hit the hEF gear, you can measure the triode magnification

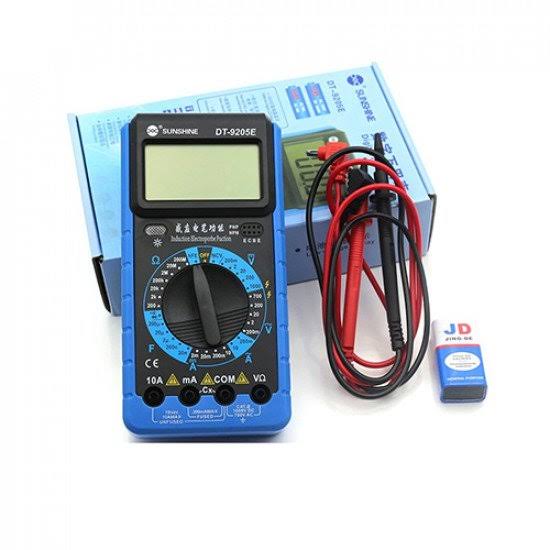

Package Content*



1x Sunshine DT-9205E Digital Multimeter

1x Red Black Cable

1x 9V Battery
1x User Manual
