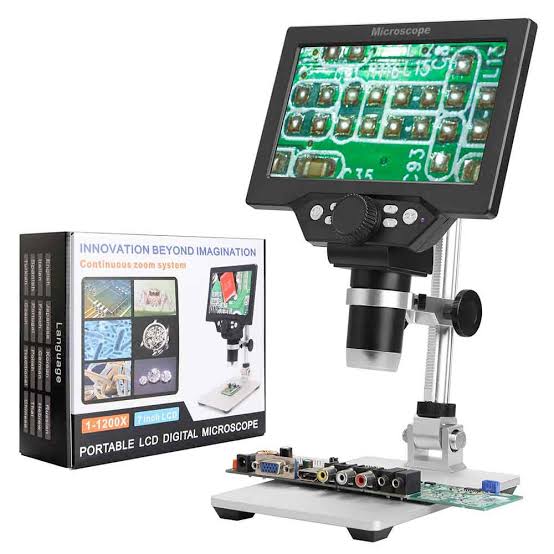

G1200 Digital / Electronic Microscope 1X-1200X
This is a digital microscope with continuous zoom, and it has a wide range of viewing options compared to other microscopes, ranging from 1 to 1200 times magnification, and always finding a suitable multiple for you.

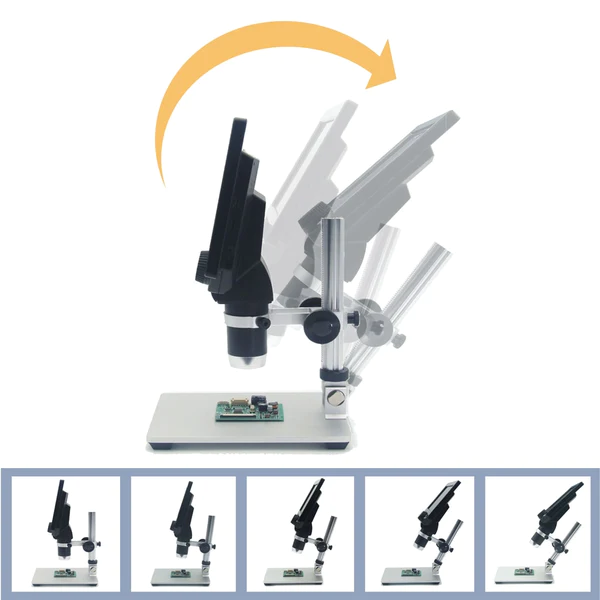

Adjustable angle can solve the problem of high reflection by the LEDs lights. The microscope has a longer range than the others because it has certain amount of room to operate. It is very convenient to use tweezers, electric soldering iron and others under your microscope.
This product has a built-in battery backup.
- HD 12 megapixel
- Display Screen: 7-inch HD LCD display
- 1-1200 * continuous amplification system.
Specifications:
- Pixel: HD 12 megapixel
- Display Screen: 7-inch HD LCD display
- Magnification: 1X - 1200X continuous amplification system.
- Distance Between Object: 10MM to infinity (different distances correspond to different multiples)
- Sixteen Language Systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portugal, German, French, Italy, Turkey, Czech, Poland, Traditional Chinese, Simplified Chinese.
- Cell(built-in): 1 * 3.7V 3000mAh Lithium Cell

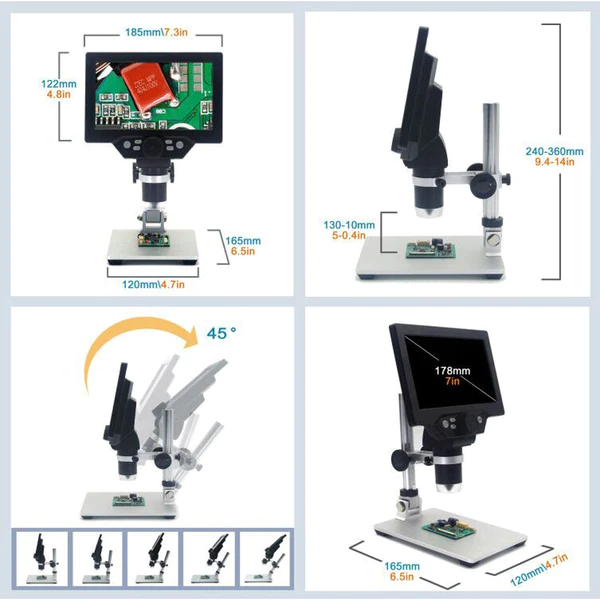

- Package Size: 205 * 160 * 80mm / 8.1 * 6.3 * 3.1in
- Package Weight: 1200g / 2.6lb
Advantage:
- Vertical microscopes have an important drawback because they are used in many applications such as solder on PCBs, model designation of some tiny chips, and metals, and it is easy to lose sight of the details of the objects due to reflection. Our product specifically addresses this issue. It is an angle-adjustable digital microscope that solves the problem of high reflection. It's a suitable experience in the electronics maintenance industry, and it's important to note that. This machine has a longer range than the others because it has certain amount of room to operate. It is very convenient to use tweezers, electric soldering iron and others under your microscope.
- Most other microscopes are two-gears magnification, either too large or too small. There will always be visual regret. This is a digital microscope with continuous zoom and zoom, and it has a wide range of viewing options compared to other microscopes, ranging from 1 to 1200 times magnification, and always finding a suitable multiple for you to.

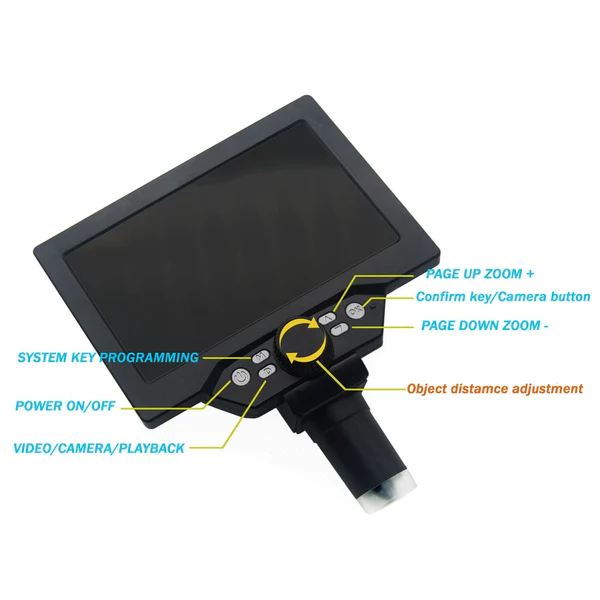

Button Setting: Power: press 2 seconds to turn on/off
M Key: Function setting
- Screen Saver: Off * 30 sec/1 mins/2 mins (optional)
- Automatic Shutdown: Off * 3 minutes/5 minutes/10 minutes
- Hz Light Source: 50 Hz/60 Hz
- Language options: 16 Languages
- Date Adjustment: year, month, day｜hour, minute, second
- Format: YES/NO
- Default: YES/NO
In Video Mode:
- Resolution: 1080FHD, 720P, VGA
- Circulating Camera: Off/3 minutes/5 minutes/10 minutes. When the flash memory card is full, the foremost video data will be deleted and the video will be saved.
- HDR High Dynamic Range: On/Off (When power on, the video recording function will be turned on automatically if any object moves under the lens without manual operation.)
- Exposure Compensation: 7 grades for option
- Date Label: Display/Close-Date and Time can be selected on the screen
In Photo Mode:
- Photograph Delay: Single. 2 seconds. 5 seconds. 10 seconds.
- Photo Pixels: 1.3 M * 2 M * 5 M * 8 M * 10 M * 12 M
- Continuous Shootings: 3 consecutive shots
- Photo Quality: Quality/Standard/Compression
- Sharpness: Strong/Standard/Soft
- Color: Nothingness/Black and White/Nostalgia
- ISO: Automatic * 100 * 200 * 400
- Exposure Compensation: 7 grades for option
- Photo assist: Anti-hand shock on/off
- Date label: On/Off
- Watch: Up/Down Delete Protection
D Key: Mode Keys:
- Switch: Camera mode, camera mode, playback mode:
- Up, Down, OK (Photo/Video, Open)
- Power supply DC interface (Micro USB).
- Flash card socket, support 1-128GB. Class10 + speed
- Light brightness regulator.
- REST key, system restore. (If the machine is inoperable, press the key in this hole with a needle-like sharp object to restart the machine)
- Highlight 8 LED lamps with a continuous service life of up to 100,000 hours.
Special Intelligent Angle-adjustable Aluminum Alloy Support:
- The nearest distance between the machine lens and the object is about 10mm, when the magnification is the maximum. On the contrary, the farther away the lens is from the object, the smaller the magnification is.
- Magnification is inverse to the distance between the lens and object.
