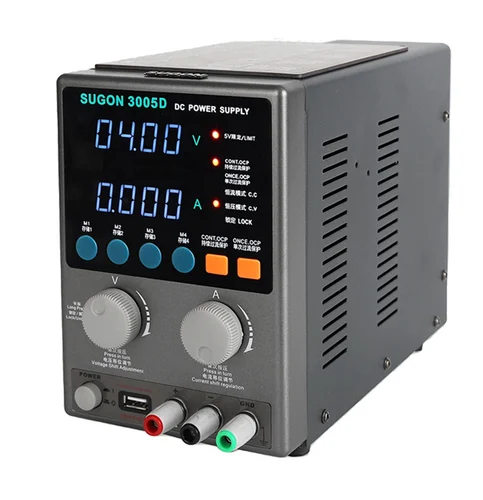

SUGON 3005D DC POWER SUPPLY

Features:

1. High precision 4-digit LED digital display, intuitive and clear.

2. Intelligent fan, excellent heat dissipation, effectively extending fan life and reducing noise.

3. Using advanced technology, it effectively reduces the weight of the power supply and facilitates power supply movement.

4. Multiple protection functions, over current protection (OCP), over temperature protection (OTP), over power protection (OPP).

5. Plastic panel, more beautiful.

6.Adjustable USB output



Output Power: 160W

Power Supply Voltage: 220V ±10% 50Hz or 220V ±10% 60Hz

Export voltage: Continuously adjustable from 0 to 30V  (resolution is 0.01V)

Voltage export accuracy: ±0. 02V

Recovery time: 100uS

Constant current value : 0~5A

Constant output current : Continuously adjustable from 0 to 5A (resolution is 0. 0001A)

OCP current value:  0-5A Accuracy: ±0. 01A

Signal test frequency  range: 30~1800MHZ including cell phone signal test



Product Features :



Double Digital Display

1. Ring Transformer: working for a long time

2. Temperature-sensitive Cooling Fan: automatically activates the fan function when the components temperature is too high.

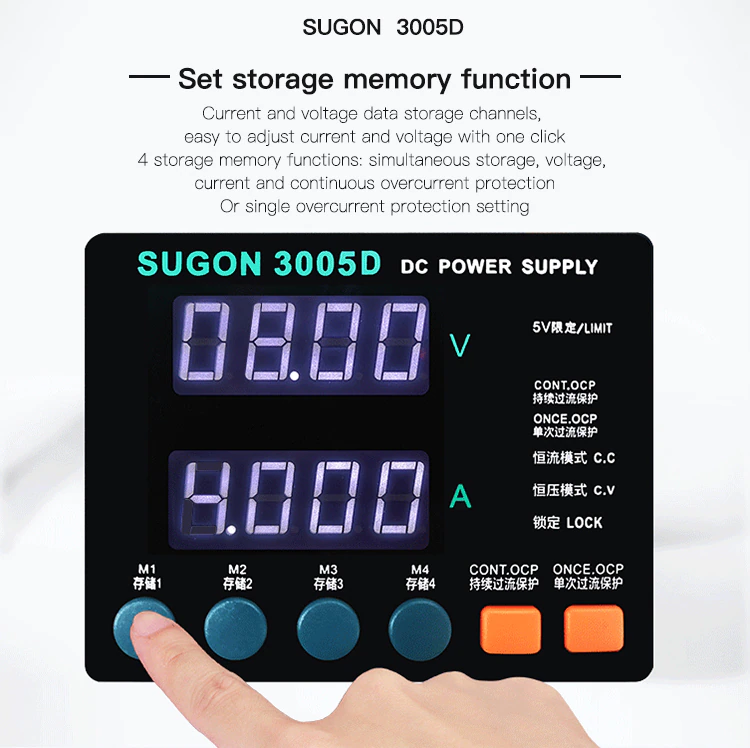

3. 4 Memory Modes : M1, M2, M3, M4 4 memory modes, save the records(current/voltage) by setting.

4. Orange Bottons: current/Voltage protection function, continuous overcurrent protection and once overcurrent protection, press and hold one of them to make the corresponding lamp (CONT. OCP or ONCE. OCP) lights up to work.

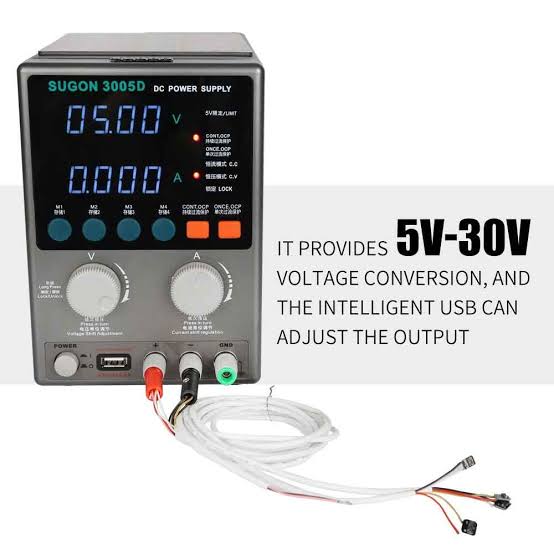

5. Double modes to adjust current and voltage: <1> Normally twist V/A knob keys to adjust current and voltage; <2> When you need to quickly adjust larger or smaller current or voltage, long press 3 seconds current or voltage button to make the number jump and then knob directly to adjust the digital current or voltage you want.6. USB output: Adjust the current and voltage you want in the same way as above when connecting via USB.



• Digital Display: 2 LED Digital Display Condition: 100% Brand New Model: 3005D
• Output Voltage: 0 ~ 30V Output Current: 0 ~ 5A
• Constant current mode (CC) When the current value exceeds the limit value of the output current, the equipment will work in the CC mode. The CC indicator light on the front panel is on, the output current value is controlled to the set value. Since the limited output power cannot be overloaded, the output voltage can be lower than the set value. When the output current is lower than the set value, the equipment will automatically change to CC mode.
• Supply power: AC 220-240V, 50Hz/60Hz. Working Temperature: -10°C ~ 40 °C Relative Humidity: ‹ 90% Storage Conditions: -10°C ~ 40 °C Relative Humidity: ‹ 80% Stable Voltage The output voltage is between 0 and nominal value continuously adjustable Voltage Stability: ≤0.01% +2mV Load Stability: ≤ 0.01% +2mV Recovery Time: ≤100µS Ripple Noise: ≤1 MVRMS(RMS) Temperature Coefficient: ≤ 200PPM/°C Stable Current The output current is between 0 and nominal value continuously
• Production line testing. Mobile phone, computer, electrical maintenance.



Package Content*

1x Sugon 3005D Power Supply

1x User Manual

1x Magnetic Mat

1x Power Cord
