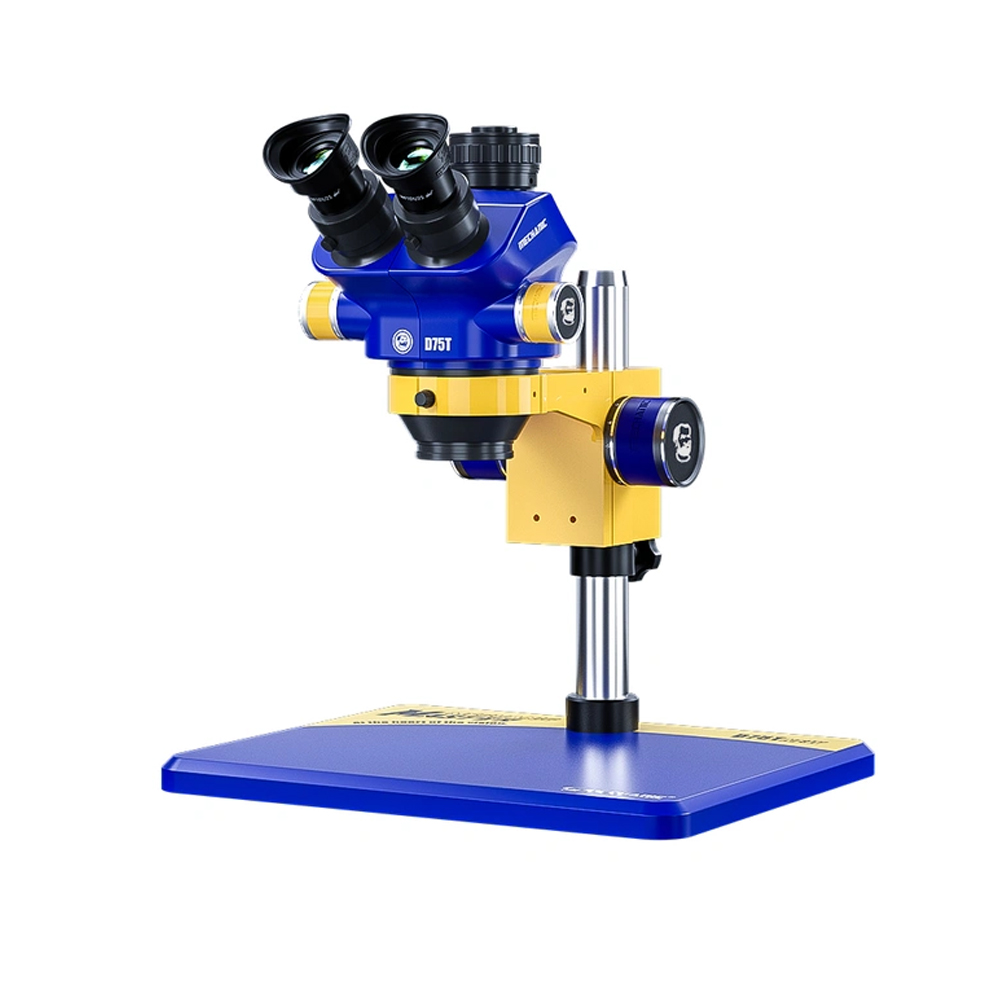

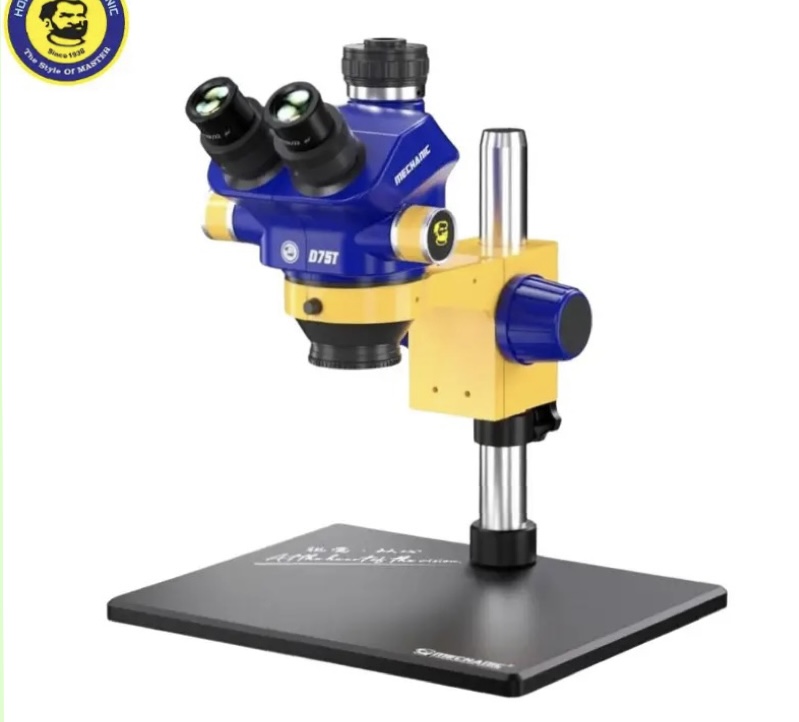

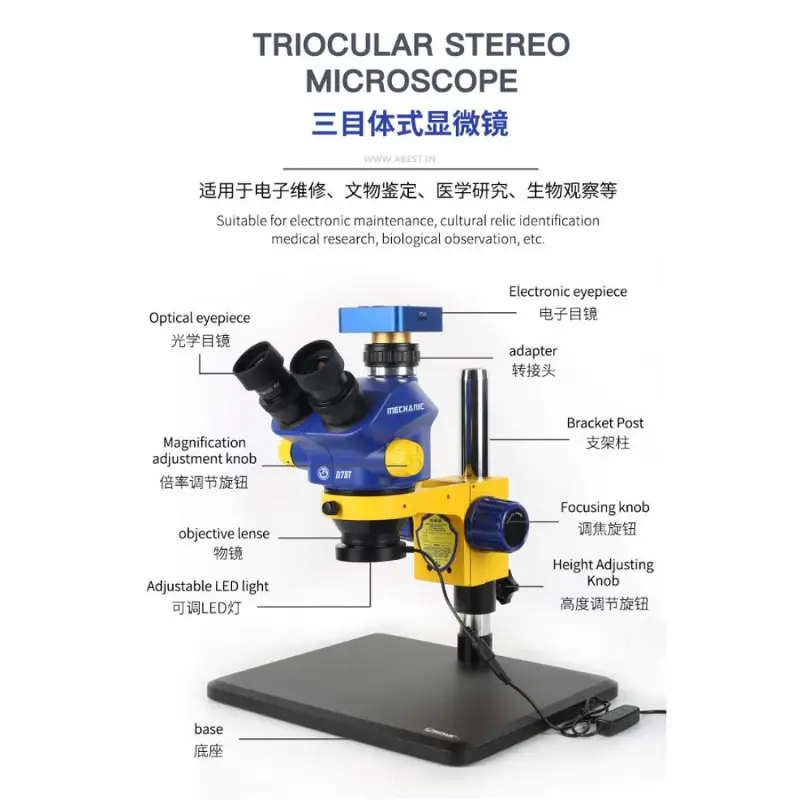

MECHANIC D75T -7X-5.0X HD OPTICA TRINOCULAR STEREO MICROSCOPE FOR PCB MOTHERBOARD INSPECTION.
Features:
- 7X-50X zoom magnification power with crisp sharp images
- Widefield of view* Sturdy all-metal pillar stand
- High resolution with great flatness and contrast, giving sharp and clear images
- Sharp stereo erect images with a wide field of view
- Crystal clear original true-co microscope images
- Large working distance Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Adjustable interpupillary distance
- Adjustable bracket, lifting range:50mm; easy to operate
- Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 6.5X-67X, interpupillary distance 54-76mm, bilateral visibility adjustable
- Eyepiece: WF10X/22mm High Eyepiece

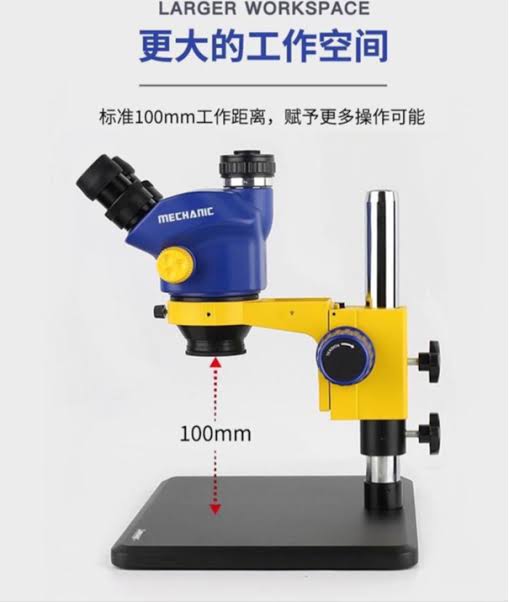

- Effective distance: 100mm, the use of auxiliary objective lens can be extended 30mm-287mm

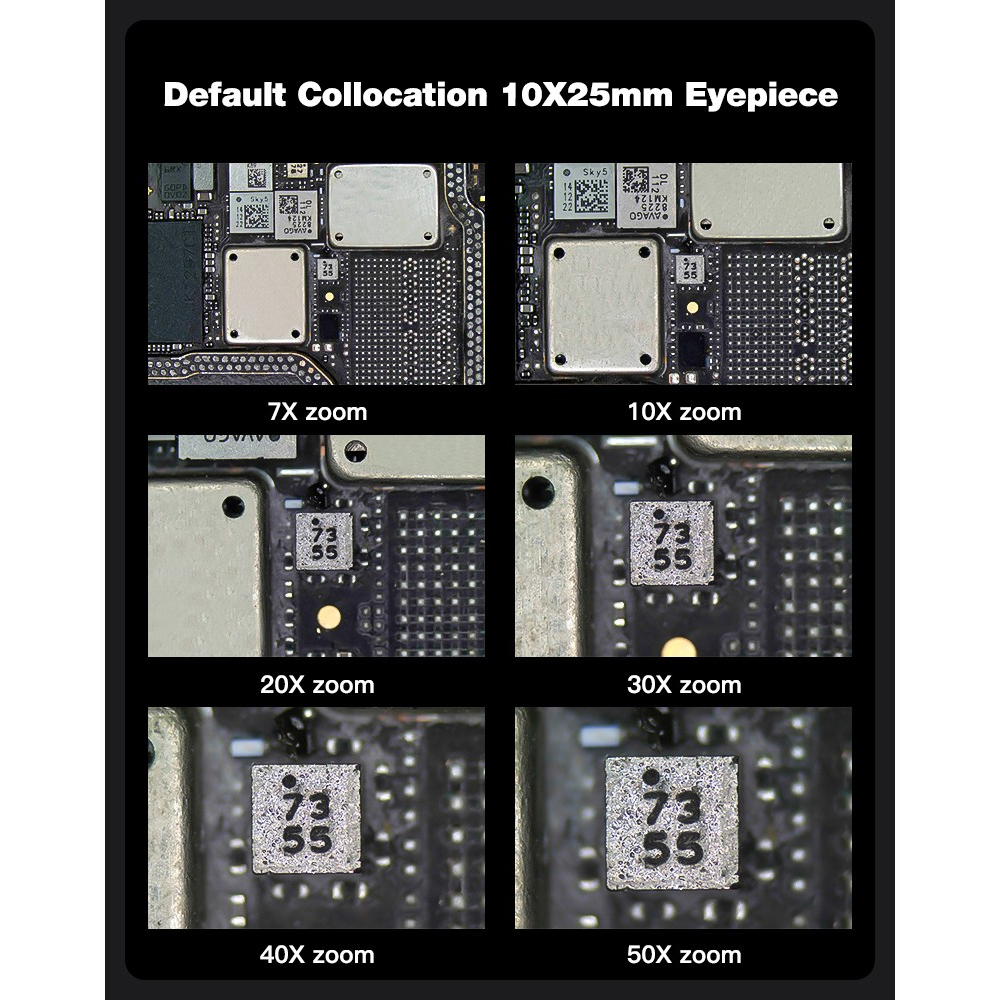

- Magnification:7X-50X
Specification:
- Product Name: Industrial grade trinocular stereo microscope
- Product Model: D-75T-B3
- Product Size: 195*253*225mm
- Magnification: Standard 0.7-4.5X(Optional 2.1X-180X)

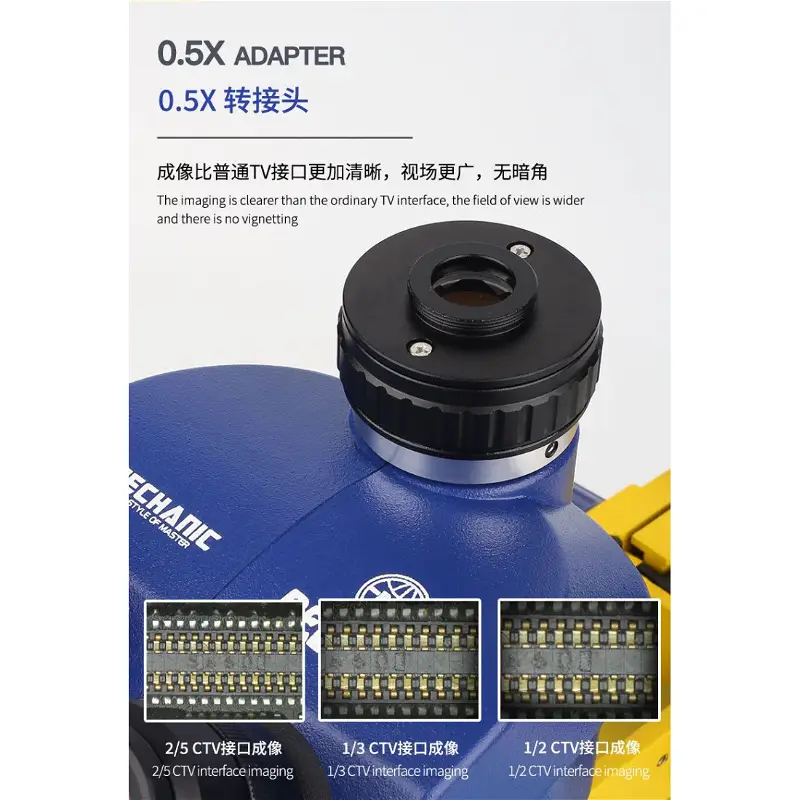

- Eyepiece: 0.5X CTV HD electron microscope
- Objective Len: 0.7X-50X
- Eyepiece: WF10X22 High Eyepiece
- Observation Head: Binocular observation head 45°tilt, eyepiece pupil spacing adjustment range 54-76mm; Binocular visual acuity adjustable
- Working distance: The effective distance is 100mm, and the purchase of an auxiliary objective lens can be extended to 30-287mm
- Focusing bracket: Adjustable elasticity of focusing handwheel, lifting range 50mm

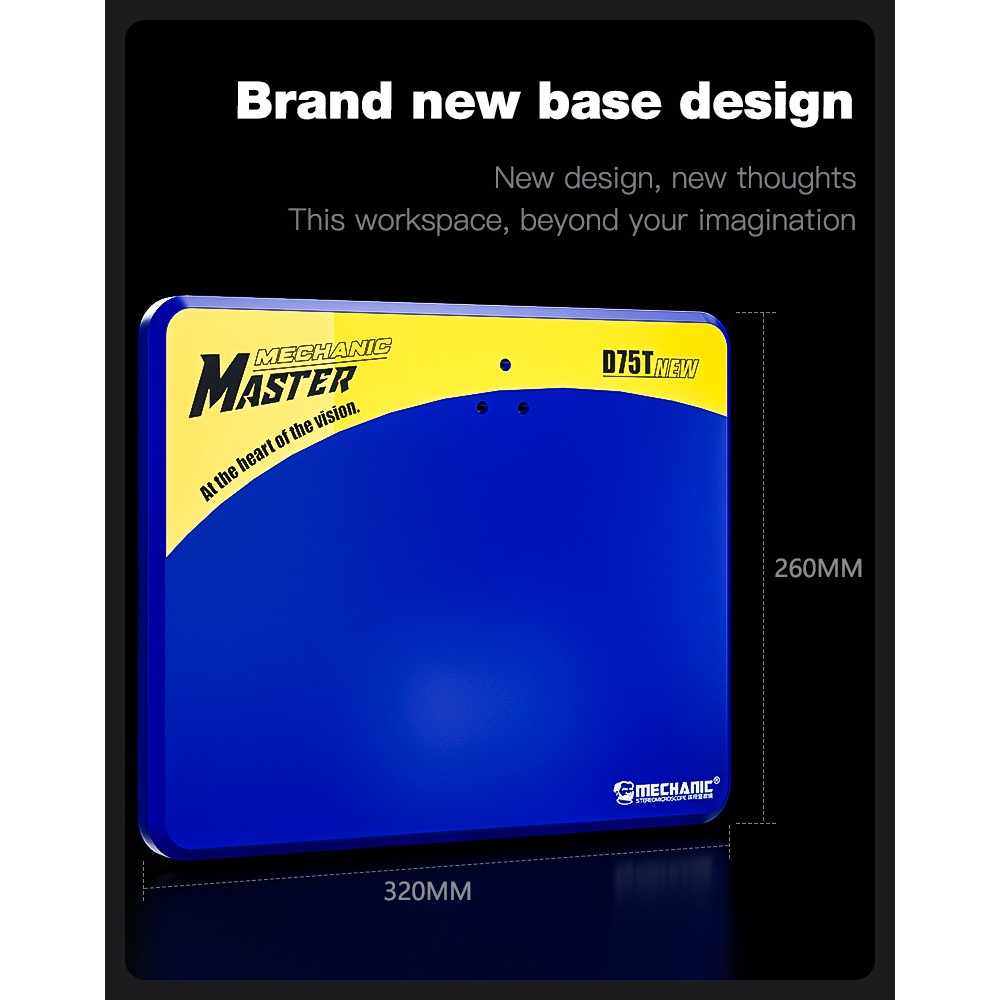

- Base Size: 195*256*20mm
- LED light source: High brightness cold white light source, can be adjusted freely
- Applicable Fields: Teaching Demonstafion, PCB electronics signal mobile phone processing and repair Component Assembly, electronic component detection

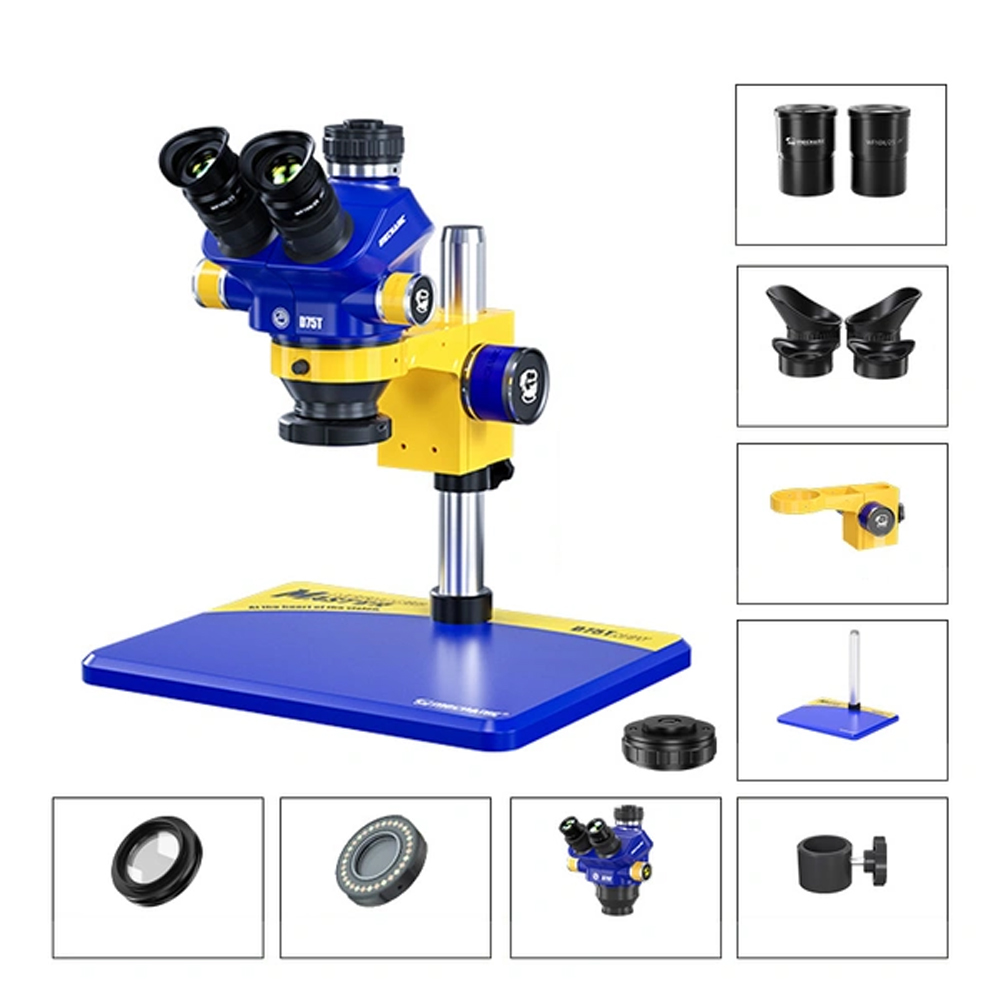

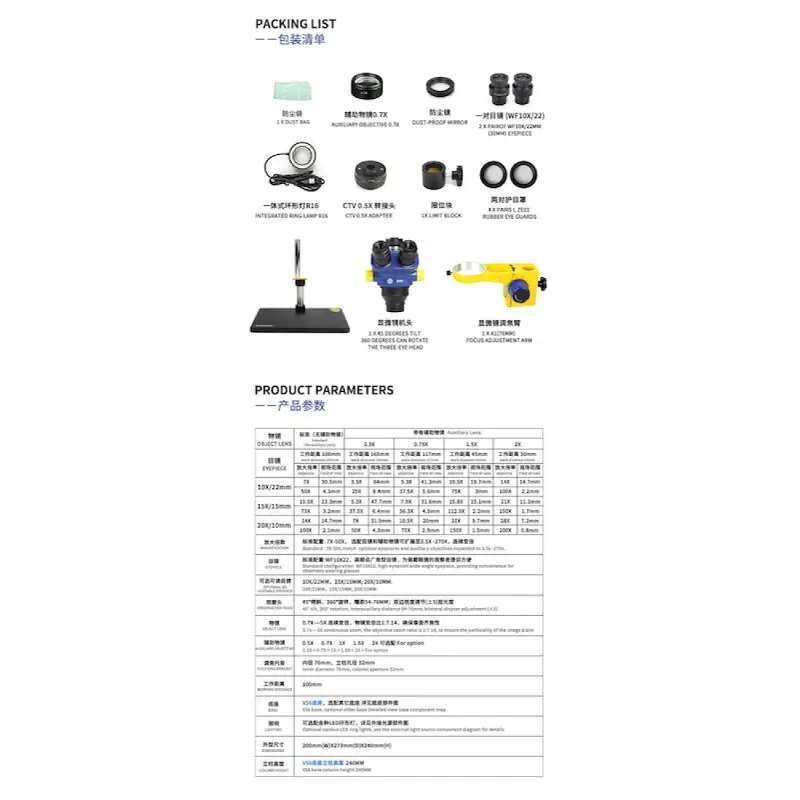

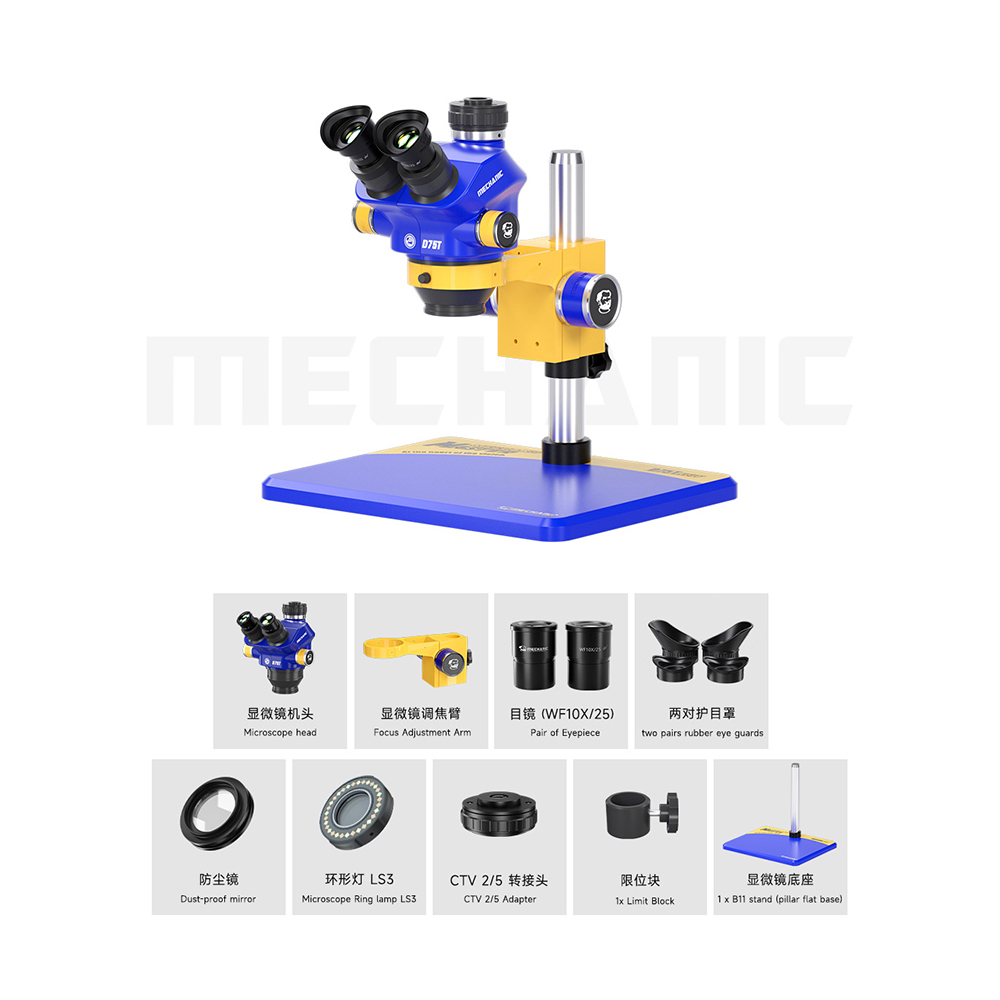

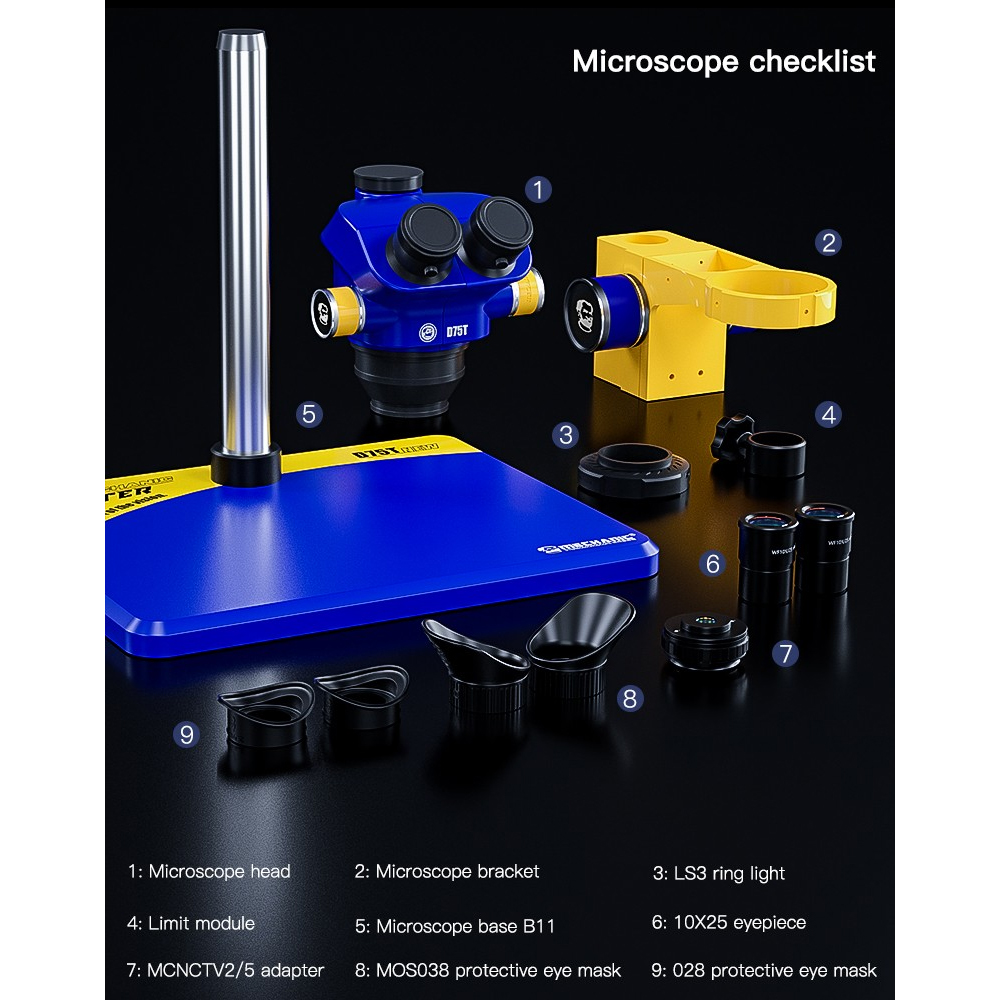

Package includes:
- 1 x Microscope Head
- 1 x Dust bag
- 1 x 0.7x or 5x choose anyone auxiliary lens
- 1 x Dust proof mirror
- 1 x Focusing arm
- 1 x Metal Base (100 mm)
- 2 x WF10X22 Eyepiece
- 4 x Rubber eye guards
- 1 x Double-sided loading plate
- 1 x LED ring lamp
- 1 x Safety manual
